HC200

Category:

Outer spherical bearing

This product is a UC bearing with eccentric self-locking ring. When the bearing rotates, the eccentric wheel and the collar on the inner diameter surface fix the shaft for the bearing. This bearing has high ash and water resistance because of the high-grade grease used in the sealing ring. This product can be widely used with a variety of conditions.

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Outer spherical bearing

Parameters

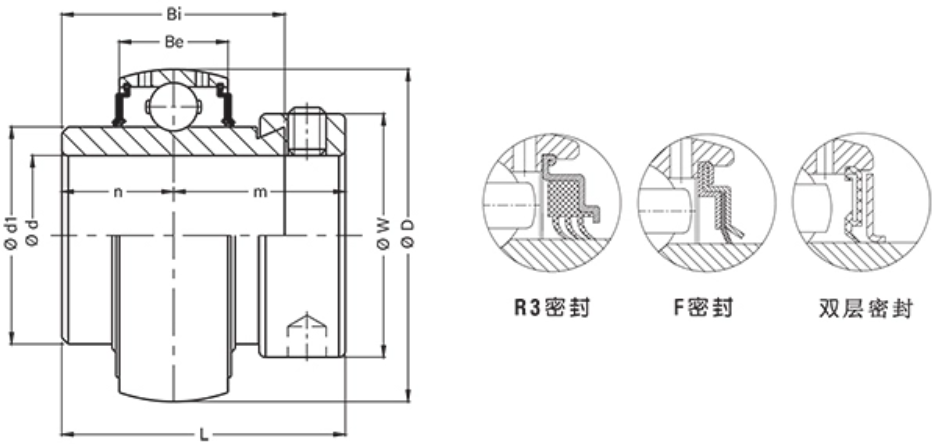

Shaft diameter (mm/ in.)	Bearing model	Overall dimension (mm)								Stop screw (mm)	Load (Kgf)		HeavyQuantity (Kg)
d		D	d1	Bi	L	n	m	Be	W	(UNF)	Cr	Cor
3/4	HC 204-12	47.0	29.0	34.0	43.5	17.0	26.5	16.0	33.3	M6x1 1/4-28	1310	680	0.20
20	HC 204
7/8	HC 205-14	52.0	34.0	34.8	44.3	17.4	26.9	17.0	38.1	M6x1 1/4-28	1430	800	0.30
15/16	HC 205-15
25	HC 205
1	HC 205-16
25	HC 206-250	62.0	40.5	36.4	48.3	18.2	30.1	19.0	44.5	M8x1 5/16-24	2000	1140	0.40
1	HC 206-16
1-1/8	HC 206-18
30	HC 206
1-3/16	HC 206-19
1-1/4	HC 206-20
30	HC 207-300	72.0	48.0	37.6	51.1	18.8	32.3	20.0	55.6	M8x1 5/16-24	2640	1550	0.60
1-1/4	HC 207-20
1-5/16	HC 207-21
1-3/8	HC 207-22
35	HC 207
1-7/16	HC 207-23
35	HC 208-350	80.0	53.0	42.8	56.3	21.4	34.9	21.0	60.3	M8x1 5/16-24	2990	1860	0.80
1-7/16	HC 208-23
1-1/2	HC 208-24
1-9/16	HC 208-25
40	HC 208
1-1/2	HC 209-24	85.0	57.0	42.8	56.3	21.4	34.9	22.0	63.5	M8x1 5/16-24	3350	2120	0.90
1-9/16	HC 209-25
40	HC 209-400
1-5/8	HC 209-26
1-11/16	HC 209-27
1-3/4	HC 209-28
45	HC 209
1-11/16	HC 210-27	90.0	62.0	49.2	62.7	24.6	38.1	23.0	69.9	M8x1 5/16-24	3600	2370	1.05
1-3/4	HC 210-28
45	HC 210-450
1-7/8	HC 210-30
1-15/16	HC 210-31
50	HC 210
2	HC 210-32
1-15/16	HC 211-31	100.0	69.0	55.4	71.3	27.7	43.6	25.0	76.2	M10x1.25 3/8-24	4400	2980	1.45
50	HC 211-500
2	HC 211-32
55	HC 211
2-3/16	HC 211-35
55	HC 212-55	110.0	75.0	61.8	77.7	30.9	46.8	27.0	84.0	M10x1.25 3/8-24	5350	3350	1.90
2-3/16	HC 212-35
2-1/4	HC 212-36
60	HC 212
2-3/8	HC 212-38
2-7/16	HC 212-39
