SC200

Category:

Outer spherical bearing

This product is a sealed bearing with the same thickness of inner ring and outer ring. The outer diameter of this assembly follows the 6200 grooved bearing and serves as the outer surface. It is widely used in roller conveyors, etc. The inner diameter capacity of this assembly is the same as that of a conventional bearing. It can be used in combination with h6 bearing shaft to achieve perfect compression value.

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Outer spherical bearing

Parameters

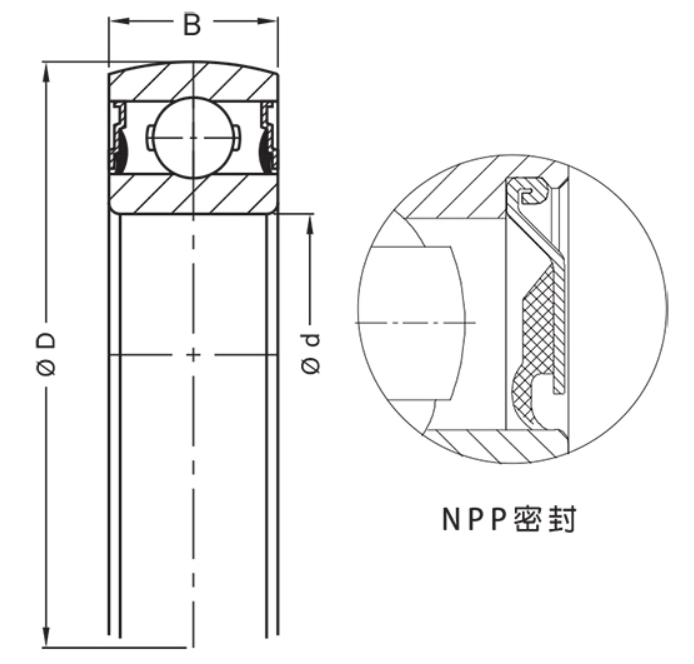

Shaft diameter mm/in.	Bearing model NO.	Dimensions (mm/in.)		Cr(N)	Color (N)	HeavyQuantity (kg)
d		D	B
10	SC200	30	9	5100	2230	0.031
		1.1811	0.3543
12	SC201	32	10	6800	3050	0.033
		1.2598	0.3937
15	SC202	35	1 1	7600	3490	0.043
		1.378	0.4331
17	SC203	40	12	9600	4600	0.061
		1.5748	0.4724
20	SC204	47	14	12800	6600	0.098
		1.8504	0.5512
25	SC205	52	15	1400	7850	0.122
		2.0472	0.5906
30	SC206	62	16	19400	11250	0.195
		2.4409	0.6299
35	SC207	72	17	25700	15300	0.28
		2.8346	0.6693
40	SC208	80	18	29500	18100	0.358
		3.1496	0.7087
45	SC209	85	19	32700	20900	0.405
		3.3465	0.748
50	SC210	90	20	3500	23200	0.449
		3.5433	0.7874
55	SC211	100	21	43300	29200	0.589
		3.937	0.8268
60	SC212	110	22	47700	32800	0.774
		4.3307	0.8661
