SA200

Category:

Outer spherical bearing

The outer diameter of the inner ring and the inner diameter of the shaft sleeve have eccentric grooves, which can firmly fix the shaft on the bearing during rotation. The high-quality grease is also sealed in the bearing and is suitable for tight and lightweight components.

Manager Li +86-13561234220

info@femabearing.com

Related Products

Online message

Key words:

Outer spherical bearing

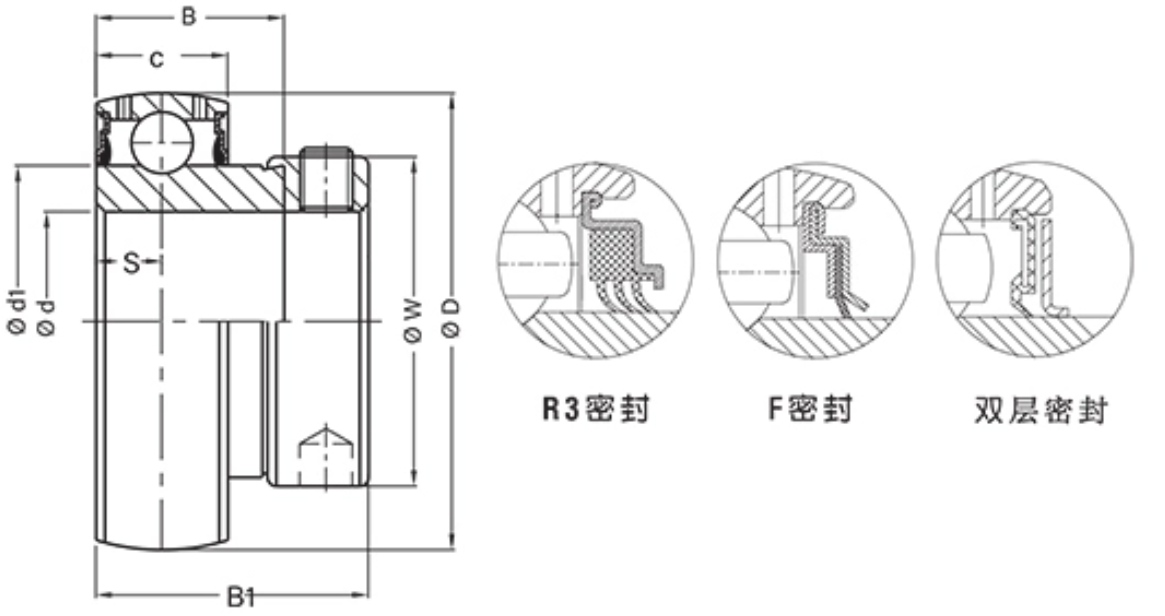

Parameters

Shaft diameter Mm/ in.	Bearing model	Overall dimension (mm)							Stop Screw Size	Load (Kgf)		Weight
d		D	L	Bi	Be	n	m	W	UNF	Cr	Cor	(Kg)
12	SA 201	40.0	28.6	19.0	12.0	6.5	22.1	28.0	M6x1.0 1/4-28	970	490	0.15
1/2	SA 201-8
15	SA 202
5/8	SA 202-10
17	SA203
11/16	SA 203-11
3/4	SA 204-12	47.0	31.0	21.4	14.0	7.5	23.5	33.0	M6x1.0 1/4-28	1310	680	0.15
20	SA 204
7/8	SA 205-14	52.0	31.0	21.4	15.0	7.5	23.5	37.4	M6x1.0 1/4-28	1430	800	0.20
25	SA 205
15/16	SA205-15
1	SA 205-16
1-1/8	SA 206-18	62.0	35.7	23.8	18.0	9.0	26.7	44.1	M6x1.0 5/16-24	2000	1140	0.30
30	SA 206
1-3/16	SA 206-19
1-1/4	SA 206-200
1-1/4	SA 207-20	72.0	38.9	25.4	19.0	9.5	29.4	51.1	M8x1.0 5/16-24	2640	1550	0.55
1-5/16	SA207-21
1-3/8	SA 207-22
35	SA 207
1-7/16	SA 207-23
1-1/2	SA 208-24	80.0	43.7	30.2	21.0	11.0	32.7	58.0	M8x1.0 5/16-24	2990	1860	0.60
1-9/16	SA208-25
40	SA 208
1-5/8	SA 209-26	85.0	43.7	30.2	22.0	11.0	32.7	63.5	M8x1.0 5/16-24	3350	2120	0.60
1-11/16	SA 209-27
1-3/4	SA 209-28
45	SA 209
1-7/8	SA 210-30	90.0	43.7	30.2	22.0	11.0	32.7	69.0	M8x1.0 5/16-24	3600	2370	0.60
1-15/16	SA 210-31
50	SA 210
2	SA 210-32
2	SA 211-32	100.0	48.3	32.6	24.0	11.9	36.4	76.0	M10x1.25 3/8-24	4400	2980	0.65
2-3/16	SA 211-35
2-1/8	SA211-34
55	SA 211
60	SA 212	110.0	53.1	37.1	24.0	11.9	41.2	84.0	M10x1.25 3/8-24	5350	3350	0.65
2-1/4	SA212-36
2-3/8	SA212-38
2-7/16	SA 212-39
