UKX 00
Category:
Outer spherical bearing
Key words:
Outer spherical bearing
Tapered hole (with fasteners) UK2 (X, 3) ordinary UK2 (3) R3 triple sealing ring product is a grease sealed deep groove ball bearing composed of an outer ring of a spherical outer diameter surface equipped with an oil supply structure and an inner ring of a tapered hole. According to the sealing device, it is divided into two kinds: ordinary products (with oil seal and oil slinger) and triple sealing ring products (attached mark R3). The fixing to the shaft is carried out by means of fasteners. Type UK bearings (with fasteners) are best suited for long shaft applications. For UK type bearings, the nominal type of applicable fastener shall be attached after the nominal type of bearing.
-
UK 200 (light load)
-
UKX00 (medium load)
-
UK 300 (heavy duty)
Parameters
| Shaft diameter mm/in. |
Bearing model | Tight Sleeve Model No. |
Profile RulerInch (Mm) |
Load (Kgf) |
Weight | ||||||||

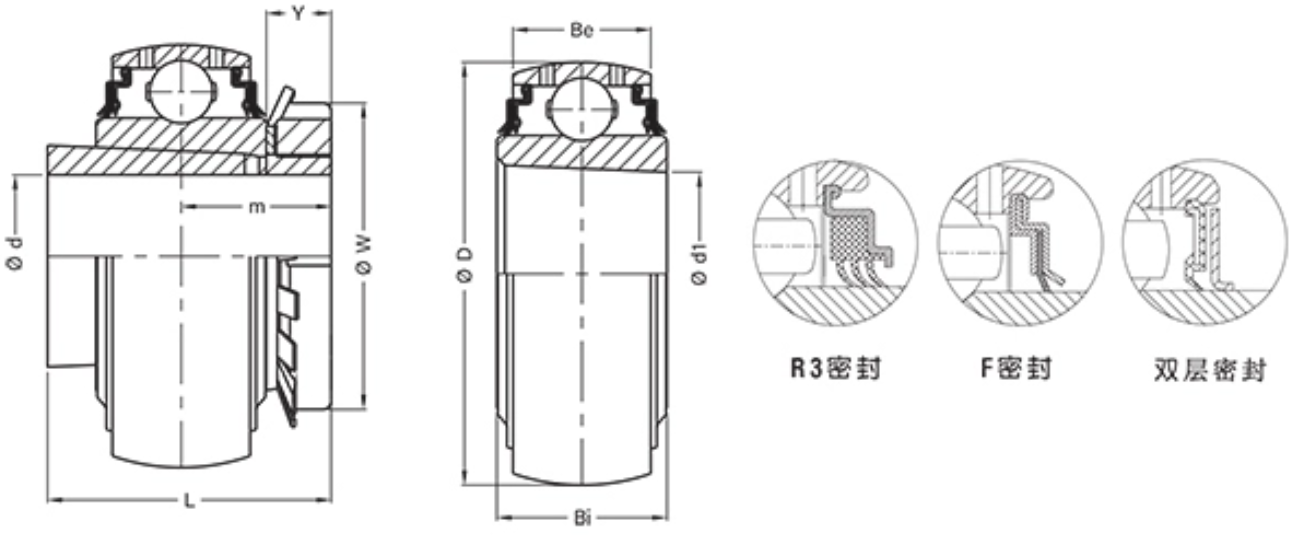

| d | D | Bi | Be | L | m | W | d1 | Y | Cr | Cor | (Kg) | ||
| 3/4 |
UKX 05 | HE2305 | 62.0 | 26.0 | 19.0 | 35.0 | 18.5 | 38.0 | 25.0 | 8.0 | 1430 | 800 | 0.25 |
| 20 | H2305 | ||||||||||||
| 7/8 |
UKX 06 | HS2306 | 72.0 | 29.0 | 20.0 | 38.0 | 20.5 | 45.0 | 30.0 | 8.0 | 2000 | 1140 | 0.40 |
| 25 | H2306 | ||||||||||||
| 1 | HE2306 | ||||||||||||
| 1-1/8 |
UKX 07 | HS2307 | 80.0 | 31.0 | 21.0 | 43.0 | 22.5 | 52.0 | 35.0 | 9.0 | 2640 | 1550 | 0.55 |
| 30 | H2307 | ||||||||||||
| 1-3/16 |
HA2307 | ||||||||||||
| 1-1/4 |
UKX 08 | HE2308 | 85.0 | 31.0 | 22.0 | 46.0 | 24.5 | 58.0 | 40.0 | 10.0 | 2990 | 1860 | 0.70 |
| 1-5/16 |
HA2308 | ||||||||||||
| 1-3/8 |
HS2308 | ||||||||||||
| 35 | H2308 | ||||||||||||
| 1-7/16 |
UKX 09 | HA2309 | 90.0 | 32.0 | 24.0 | 50.0 | 26.0 | 65.0 | 45.0 | 11.0 | 3350 | 2120 | 0.75 |
| 1-1/2 |
HE2309 | ||||||||||||
| 40 | H2309 | ||||||||||||
| 1-5/8 |
HS2309 | ||||||||||||
| 1-11/16 |
UKX 10 | HA2310 | 100.0 | 35.0 | 25.0 | 55.0 | 27.5 | 70.0 | 50.0 | 12.0 | 3600 | 2370 | 0.90 |
| 1-3/4 |
HE2310 | ||||||||||||
| 45 | H2310 | ||||||||||||
| 1-7/8 |
UKX 11 | HS2311 | 110.0 | 38.0 | 27.0 | 59.0 | 28.5 | 75.0 | 55.0 | 12.0 | 4400 | 2980 | 1.15 |
| 1-15/16 | HA2311 | ||||||||||||
| 50 | H2311 | ||||||||||||
| 2 | HE2311 | ||||||||||||
| 2-1/8 |
UKX 12 | HS2312 | 120.0 | 40.0 | 28.0 | 62.0 | 31.0 | 80.0 | 60.0 | 13.0 | 5350 | 3350 | 1.45 |
| 55 | H2312 | ||||||||||||
| 2-3/16 |
UKX 13 | HA2313 | 130.0 | 40.0 | 29.0 | 65.0 | 32.0 | 85.0 | 65.0 | 14.0 | 5850 | 4080 | 1.80 |
| 2-1/4 |
HE2313 | ||||||||||||
| 60 | H2313 | ||||||||||||
| 2-3/8 |
HS2313 | ||||||||||||
| 2-1/2 |
UKX 15 | HE2315 | 140.0 | 45.0 | 32.0 | 73.0 | 35.5 | 98.0 | 75.0 | 15.0 | 6750 | 5050 | 2.60 |
| 65 | H2315 | ||||||||||||
| 2-3/4 |
UKX 16 | HE2316 | 150.0 | 46.0 | 34.0 | 78.0 | 39.0 | 105.0 | 80.0 | 17.0 | 7400 | 5530 | 3.30 |
| 70 | H2316 | ||||||||||||
| 75 | UKX 17 | H2317 | 160.0 | 47.0 | 36.0 | 82.0 | 40.0 | 110.0 | 85.0 | 18.0 | 8500 | 6510 | 3.90 |
| 3 | HE2317 | ||||||||||||
| 80 | UKX 18 | H2318 | 170.0 | 50.0 | 39.0 | 86.0 | 42.0 | 120.0 | 90.0 | 18.0 | 9750 | 7300 | 4.70 |
