UK200
Category:
Outer spherical bearing
Key words:
Outer spherical bearing
Tapered hole (with fasteners) UK2 (X, 3) ordinary UK2 (3) R3 triple sealing ring product is a grease sealed deep groove ball bearing composed of an outer ring of a spherical outer diameter surface equipped with an oil supply structure and an inner ring of a tapered hole. According to the sealing device, it is divided into two kinds: ordinary products (with oil seal and oil slinger) and triple sealing ring products (attached mark R3). The fixing to the shaft is carried out by means of fasteners. Type UK bearings (with fasteners) are best suited for long shaft applications. For UK type bearings, the nominal type of applicable fastener shall be attached after the nominal type of bearing.
Parameters

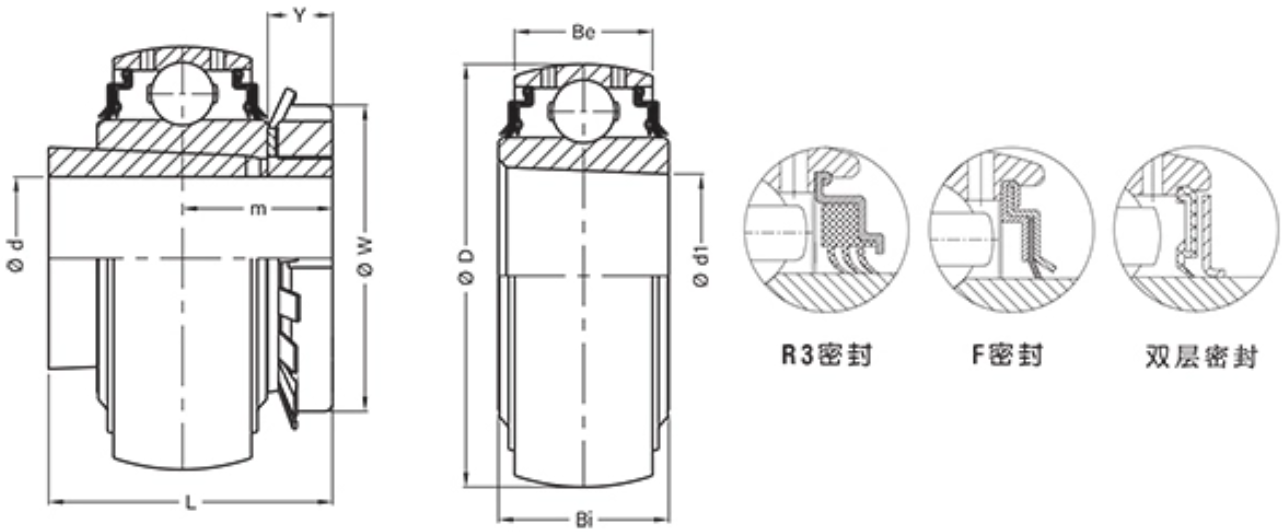

| Shaft Diameter (mm/in.) | Bearing model | Tight Sleeve Model | Overall dimension (mm) | Load (Kgf) | Weight | ||||||||
| d | No. | D | Bi | Be | L | m | W | d1 | Y | Cr | Cor | (Kg) | |
| 3/4 |
UK 205 | HE2305 | 52.0 | 21.0 | 17.0 | 35.0 | 18.5 | 38.0 | 25.0 | 8.0 | 1430 | 800 | 0.25 |
| 20 | H2305 | ||||||||||||
| 7/8 |
UK 206 | HS2306 | 62.0 | 25.0 | 19.0 | 38.0 | 20.5 | 45.0 | 30.0 | 8.0 | 2000 | 1140 | 0.40 |
| 15/16 | HA2306 | ||||||||||||
| 25 | H2306 | ||||||||||||
| 1 | HE2306 | ||||||||||||
| 1-1/8 |
UK 207 | HS2307 | 72.0 | 27.0 | 20.0 | 43.0 | 22.5 | 52.0 | 35.0 | 9.0 | 2640 | 1550 | 0.55 |
| 30 | H2307 | ||||||||||||
| 1-3/16 |
HA2307 | ||||||||||||
| 1-1/4 |
UK 208 | HE2308 | 80.0 | 29.0 | 21.0 | 46.0 | 24.5 | 58.0 | 40.0 | 10.0 | 2990 | 1860 | 0.70 |
| 1-5/16 |
HA2308 | ||||||||||||
| 1-3/8 |
HS2308 | ||||||||||||
| 35 | H2308 | ||||||||||||
| 1-7/16 |
UK 209 | HA2309 | 85.0 | 30.0 | 22.0 | 50.0 | 26.0 | 65.0 | 45.0 | 11.0 | 3350 | 2120 | 0.75 |
| 1-1/2 |
HE2309 | ||||||||||||
| 40 | H2309 | ||||||||||||
| 1-5/8 |
HS2309 | ||||||||||||
| 1-11/16 |
UK 210 | HA2310 | 90.0 | 31.0 | 23.0 | 55.0 | 27.5 | 70.0 | 50.0 | 12.0 | 3600 | 2370 | 0.90 |
| 1-3/4 |
HE2310 | ||||||||||||
| 45 | H2310 | ||||||||||||
| 1-7/8 |
UK 211 | HS2311 | 100.0 | 33.0 | 25.0 | 59.0 | 28.5 | 75.0 | 55.0 | 12.0 | 4400 | 2980 | 1.15 |
| 1-15/16 | HA2311 | ||||||||||||
| 50 | H2311 | ||||||||||||
| 2 | HE2311 | ||||||||||||
| 2-1/8 |
UK 212 | HS2312 | 110.0 | 36.0 | 27.0 | 62.0 | 31.0 | 80.0 | 60.0 | 13.0 | 5350 | 3350 | 1.45 |
| 55 | H2312 | ||||||||||||
| 2-3/16 |
UK 213 | HA2313 | 120.0 | 36.0 | 28.0 | 65.0 | 32.0 | 85.0 | 65.0 | 14.0 | 5850 | 4080 | 1.80 |
| 2-1/4 |
HE2313 | ||||||||||||
| 60 | H2313 | ||||||||||||
| 2-3/8 |
HS2313 | ||||||||||||
| 2-1/2 |
UK 215 | HE2315 | 130.0 | 41.0 | 30.0 | 73.0 | 35.5 | 98.0 | 75.0 | 15.0 | 6750 | 5050 | 2.60 |
| 65 | H2315 | ||||||||||||
| 2-3/4 |
UK 216 | HE2316 | 140.0 | 44.0 | 33.0 | 78.0 | 39.0 | 105.0 | 80.0 | 17.0 | 7400 | 5530 | 3.30 |
| 70 | H2316 | ||||||||||||
| 75 | UK 217 | H2317 | 150.0 | 44.0 | 35.0 | 82.0 | 40.0 | 110.0 | 85.0 | 18.0 | 8500 | 6510 | 3.90 |
| 3 | HE2317 | ||||||||||||
| 80 | UK 218 | H2318 | 160.0 | 48.0 | 37.0 | 86.0 | 42.0 | 120.0 | 90.0 | 18.0 | 9750 | 7300 | 4.70 |
