UC300

Category:

Outer spherical bearing

1: The steel frame and the outer ring are rigidly riveted, and the seal will not loosen due to excessive grease injection or impact vibration. 2: The triple sealing effect of two steel plates sandwiched with a layer of rubber can effectively prevent external dust intrusion. 3: The sealing effect is enhanced and the rotation speed is not affected. 4: Optimized space design, sufficient grease storage space, good sealing performance, 5: The grease replenishment period is twice that of ordinary products, save maintenance costs 6: steel skeleton of the external protection, more effectively prevent straw, hard particles and other damage to the sealing rubber

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Outer spherical bearing

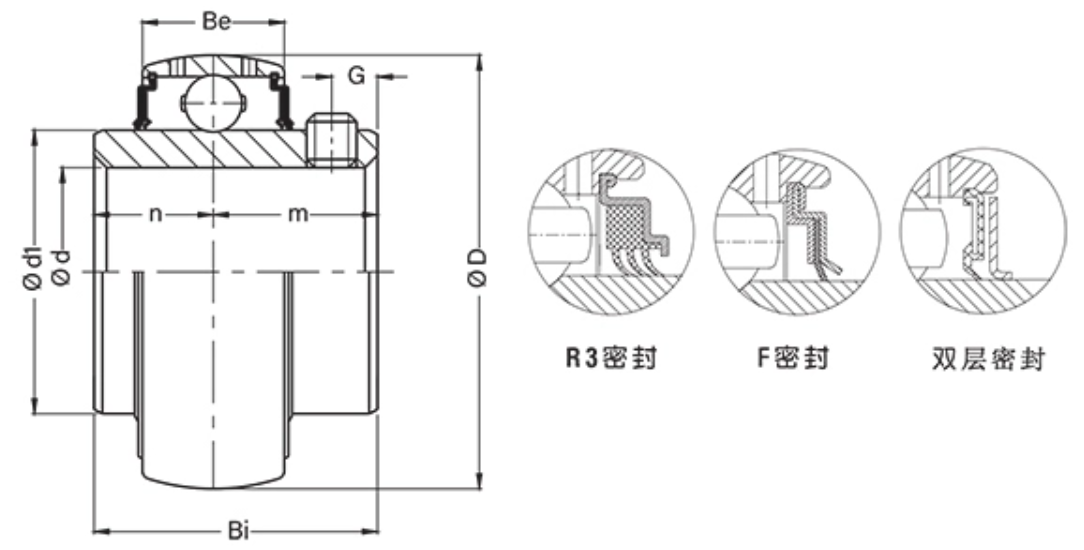

Parameters

Shaft diameter mm/in.	Bearing model NO.	Overall dimension (mm)							Stop Screw Size (Mm)	Load (Kgf)		Weight
d		D	d1	Bi	n	m	Be	G	(UNF)	Cr	Cor	(Kg)
7/8	UC 305-14	62.0	35.5	38.0	15.0	23.0	21.0	6.0	M6x1 1/4-28	2280	1170	0.35
15/16	UC 305 -15
25	UC 305
1	UC 305-16
1-1/8	UC 306-18	72.0	44.5	43.0	17.0	26.0	24.0	6.0	M6x1 1/4-28	2760	1550	0.55
30	UC 306
1-3/16	UC 306-19
1-1/4	UC 307-20	80.0	49.0	48.0	19.0	29.0	25.0	8.0	M8x1 5/16-24	3420	1960	0.80
1-5/16	UC 307-21
1-3/8	UC 307-22
35	UC 307
1-7/16	UC 307-23
1-1/2	UC 308-24	90.0	56.5	52.0	19.0	33.0	28.0	10.0	M10x1.25 3/8-24	4140	2450	1.00
1-9/16	UC 308-25
40	UC 308
1-5/8	UC 309-26	100.0	62.0	57.0	22.0	35.0	30.0	10.0	M10x1.25 3/8-24	5410	3250	1.30
1-11/16	UC 309-27
1-3/4	UC 309-28
45	UC 309
1-7/8	UC 310-30	110.0	69.0	61.0	22.0	39.0	32.0	12.0	M12x1.25 7/16-20	6300	3860	1.70
1-15/16	UC 310-31
50	UC 310
2	UC 310-32
2	UC 311-32	120.0	75.0	66.0	25.0	41.0	34.0	12.0	M12x1.25 7/16-20	7300	4570	1.95
2-1/8	UC 311-34
55	UC 311
2-3/16	UC 311-35
2-1/4	UC 312-36	130.0	81.0	71.0	26.0	45.0	36.0	12.0	M12x1.25 7/16-20	8330	5290	2.60
60	UC 312
2-3/8	UC 312-38
2-7/16	UC 312-39
2-1/2	UC 313-40	140.0	87.5	75.0	30.0	45.0	38.0	12.0	M12x1.25 7/16-20	9580	6170	3.25
65	UC 313
2-3/4	UC 314 -44	150.0	94.0	78.0	31.0	47.0	40.0	12.0	M12x1.25	10640	6940	3.95
70	UC 314
2-15/16	UC 315-47	160.0	100.5	82.0	32.0	50.0	42.0	14.0	M14x1.5 9/16-18	11570	7840	4.55
75	UC 315
3	UC 315-48
80	UC 316	170.0	108.0	86.0	34.0	52.0	44.0	14.0	M14x1.5	12540	8830	5.55
3-1/4	UC 750-52	180.0	114.0	96.0	40.0	56.0	46.0	16.0	M16x1.5	13530	9850	6.95
85	UC 317
3-7/16	UC 318-55	190.0	120.0	96.0	40.0	56.0	48.0	16.0	M16x1.5	14590	11020	7.95
3-1/2	UC 318-56
90	UC 318
95	UC 319	200.0	126.5	103.0	41.0	62.0	50.0	18.0	M16x1.5	15920	12450	8.90
3-3/4	UC 319-60
100	UC 319-100
100	UC 320	215.0	134.5	108.0	42.0	66.0	54.0	18.0	M18x1.5 3/4-16	17510	14290	11.10
3-15/16	UC 320-63
4	UC 320-64
110	UC 322	240.0	151.7	117.0	46.0	71.0	59.0	18.0	M18x1.5	20900	18200	14.30
120	UC 324	260.0	165.2	126.0	51.0	75.0	63.0	18.0	M18x1.5 3/4-16	21100	18800	18.50
4-15/16	UC 324 -79
130	UC 326	280.0	178.3	135.0	54.0	81.0	67.0	20.0	M20x1.5	23300	21800	23.00
140	UC 328	300.0	190.4	145.0	59.0	86.0	72.0	20.0	M20x1.5	2300	21800	28.50
