UC200

Category:

Outer spherical bearing

1: The steel frame and the outer ring are rigidly riveted, and the seal will not loosen due to excessive grease injection or impact vibration. 2: The triple sealing effect of two steel plates sandwiched with a layer of rubber can effectively prevent external dust intrusion. 3: The sealing effect is enhanced and the rotation speed is not affected. 4: Optimized space design, sufficient grease storage space, good sealing performance, 5: The grease replenishment period is twice that of ordinary products, save maintenance costs 6: steel skeleton of the external protection, more effectively prevent straw, hard particles and other damage to the sealing rubber

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Outer spherical bearing

Parameters

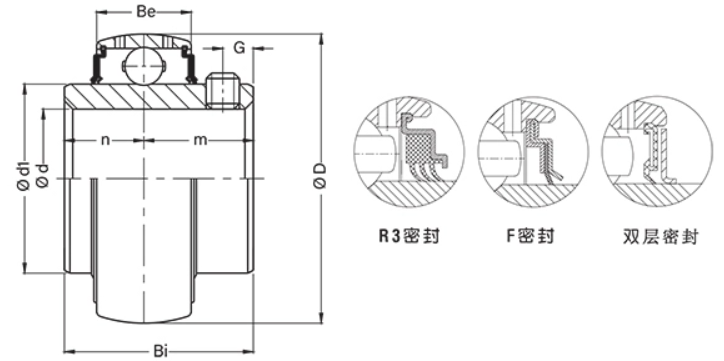

Shaft Diameter (mm/in.)	Bearing model	Overall dimension (mm)							Stop screw (mm)	Load (Kgf)		Weight
d		D	d1	Bi	n	m	Be	G	(UNF)	Cr	Cor	(Kg)
12	UC 201	47.0	29.0	31.0	12.7	18.3	16.0	4.5	M5x0.8 1/4-28	1310	680	0.20
1/2	UC 201303
15	UC 202											0.10
5/8	UC 202-10
17	UC 203											0.15
11/16	UC203-11
3/4	UC 204-12	47.0	29.0	31.0	12.7	18.3	16.0	5.0	M6x1 1/4-28	1310	680	0.20
20	UC 204
13/16	UC 205-13	52.0	34.0	34.0	14.3	19.7	17.0	5.5	M6x1 1/4-28	1430	800	0.20
7/8	UC 205-14
15/16	UC 205-15
25	UC 205
1	UC 205-16
1	UC 206-16	62.0	40.5	38.1	15.9	22.2	19.0	6.0	M6x1 1/4-28	2000	1140	0.30
1-1/16	UC 206-17
1-1/8	UC 206-18
30	UC 206
1-3/16	UC 206-19
1-1/4	UC 206-20
1-3/16	UC 207-19	72.0	48.0	42.9	17.5	25.4	20.0	6.5	M8x1 5/16-24	2640	1550	0.50
1-1/4	UC 207-20
1-5/16	UC 207-21
1-3/8	UC 207-22
35	UC 207
1-7/16	UC 207-23
1-7/16	UC208-23	80.0	53.0	49.2	19.0	30.2	21.0	8.0	M8x1 5/16-24	2990	1860	0.65
1-1/2	UC 208-24
1-9/16	UC 208-25
40	UC 208
1-5/8	UC 208 -26
1-1/2	UC209-24	85.0	57.0	49.2	19.0	30.2	22.0	8.0	M8x1 5/16-24	3350	2120	0.70
1-5/8	UC 209-26
1-11/16	UC 209-27
1-3/4	UC 209-28
45	UC 209
1-13/16	UC209-29
1-11/16	UC210-27	90.0	62.0	51.6	19.0	32.6	23.0	9.0	M8x1.25 3/8-24	3600	2370	0.80
1-3/4	UC210-28
1-13/16	UC 210-29
1-7/8	UC 210-30
1-15/16	UC 210-31
50	UC 210
2	UC 210-32
1-15/16	UC211-31	100.0	69.0	55.6	22.2	33.4	25.0	9.0	M10x1.25 3/8-24	4400	2980	1.15
2	UC 211-32
2-1/16	UC211-33
2-1/8	UC 211-34
55	UC 211
2-3/16	UC 211-35
2-1/4	UC211-36
2-3/16	UC212-35	110.0	75.0	65.1	25.4	39.7	27.0	10.5	M10x1.25 3/8-24	5350	3350	1.55
2-1/4	UC 212-36
2-5/16	UC 212-37
60	UC 212
2-3/8	UC212-38
2-7/16	UC 212-39
2-7/16	UC 2l-39	120.0	82.0	65.1	25.4	39.7	28.0	12.0	M10x1.25 3/8-24	5850	4080	1.75
2-1/2	UC 2l-40
65	UC 213
2-1/2	UC214-40	125.0	86.5	74.6	30.2	44.4	30.0	12.0	M12x1.25 7/16-20	6350	4590	2.00
2-5/8	UC214-42
2-11/16	UC 206 -43
2-3/4	UC 206 -44
70	UC 214
2-3/4	UC215-44	130.0	91.5	77.8	33.3	44.5	30.0	12.0	M12x1.25 7/16-20	6750	5050	2.20
2-13/16	UC215-45
2-7/8	UC 215-46
2-15/16	UC 215-47
75	UC 215
3	UC 215-48
80	UC 216	140.0	98.0	82.6	33.3	49.3	33.0	14.0	M12x1.25 7/16-20	7400	5530	2.80
3-3/16	UC 216-51
3-1/4	UC 650-52	150.0	105.0	85.7	34.1	51.6	35.0	14.0	M12x1.25 7/16-20	8500	6510	3.55
85	UC 217
3-7/16	UC 650-55
3-7/16	UC 218-55	160.0	111.0	96.0	39.7	56.3	37.0	14.0	M12x1.25 1/2-20	9750	7300	4.50
3-1/2	UC 218-56
90	UC 218
100	UC 220	180.0	125.5	108.0	42.0	66.0	40.0	16.0	M16x1.5 5/8-18	11000	8000	6.50
4	UC 220-64
