TBR Series
Category:
Linear bearing
Linear bearing is a linear motion system for linear travel used in conjunction with a cylindrical shaft. Because the bearing ball and the bearing outer shell point contact, the steel ball with the minimum friction resistance rolling, so the linear bearing has a small friction, and is relatively stable, does not change with the bearing speed, can obtain high sensitivity, high precision smooth linear motion.
Key words:
Linear bearing

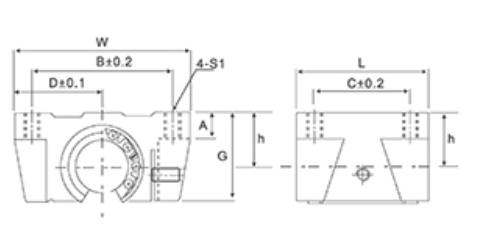

| Model | Main dimensions and installation dimensions | Rated load |
Weight/g | |||||||||
| W | G | A | L | B | D | C | h | S1 | Move Co N |
Quiet Co N |
||
| TBR16UU | 62 | 26 | 8 | 42 | 50 | 31 | 30 | 18 | M5 | 392 | 490 | 180 |
| TBR20UU | 68 | 31 | 10 | 51 | 54 | 34 | 37 | 21 | M6 | 784 | 1176 | 300 |
| TBR25UU |
82 | 41 | 12 | 65 | 65 | 41 | 50 | 28 | M8 | 1568 | 2352 | 600 |
| TBR30UU | 91 | 48 | 12 | 75 | 75 | 45.5 | 60 | 33.5 | M8 | 1764 | 2940 | 900 |
