SCE...LUU Series
Category:
Linear bearing
Linear bearing is a linear motion system for linear travel used in conjunction with a cylindrical shaft. Because the bearing ball and the bearing outer shell point contact, the steel ball with the minimum friction resistance rolling, so the linear bearing has a small friction, and is relatively stable, does not change with the bearing speed, can obtain high sensitivity, high precision smooth linear motion.
Key words:
Linear bearing

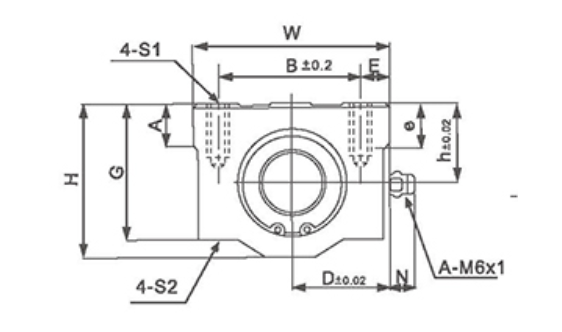

| Model | Main dimensions and installation dimensions | Weight/g | ||||||||||||
| Sealed type | Shaft diameter | h | D | W | L | H | G | A | B | C | E | S1xe | S2 | |
| SCE8LUU | 8 | 11 | 17 | 34 | 58 | 22 | 18 | 6 | 24 | 46 | 5 | M4x8 | 3.4 | 160 |
| SCE12LUU | 12 | 15 | 22 | 44 | 77 | 30 | 24.5 | 8 | 33 | 64 | 5.5 | M5x12 | 4.3 | 237 |
| SCE16LUU | 16 | 19 | 25 | 50 | 89 | 38.5 | 32.5 | 9 | 36 | 79 | 7 | M5x12 | 4.3 | 405 |
| SCE20LUU | 20 | 21 | 27 | 54 | 100 | 41 | 35 | 11 | 40 | 90 | 7 | M6x12 | 5.2 | 510 |
| SCE25LUU | 25 | 26 | 38 | 76 | 136 | 51.5 | 42 | 12 | 54 | 119 | 11 | M8x18 | 7 | 1220 |
| SCE30LUU | 30 | 30 | 39 | 78 | 154 | 59.5 | 49 | 15 | 58 | 132 | 10 | M8x18 | 7 | 1580 |
| SCE40LUU | 40 | 40 | 51 | 102 | 180 | 78 | 62 | 20 | 80 | 150 | 11 | M10x25 | 8.7 | 3180 |
| SCE50LUU | 50 | 52 | 61 | 122 | 230 | 102 | 80 | 25 | 100 | 200 | 11 | M10x25 | 8.7 | 6990 |
