LMF/K/H/L Series
Category:
Linear bearing
The linear bearing is an economical linear guide component with a nominal diameter of 5mm to 60mm. Linear bearing LM is circular and LMF is flange type. According to the installation size, it is divided into daily gauge and European gauge, and E is added after European gauge model. The linear optical axis is made of bearing steel, which is ground after quenching, and then plated with hard chromium, model SCF. For the convenience of customers, SBR/TBR linear guide rail and SC box linear bearing unit are also built with linear bearings. At the same time, equipped with shaft support SK,SHF is convenient for customers to choose.
Key words:
Linear bearing

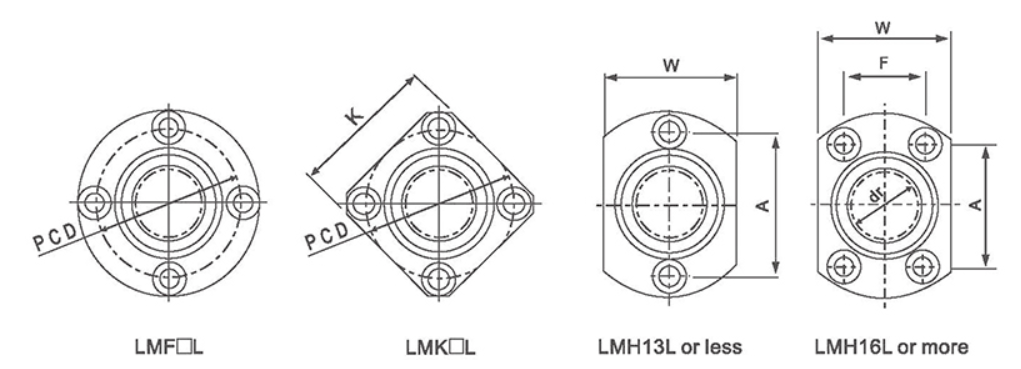

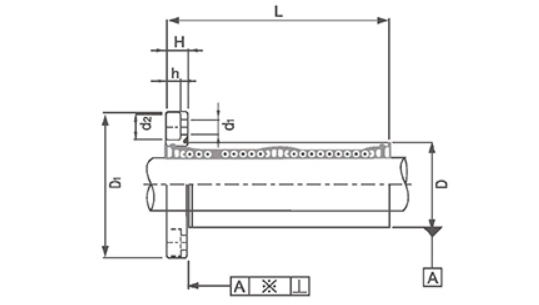

| Model | Main dimensions and tolerances | radial runout (max) Цm |
Radial clearance (max) Цm |
Rated load | Weight/g | ||||||||||||||||
| Sealed type | Steel ball column number |
dr (Mm) |
Tolerance ( Ц m ) |
D (Mm) |
Tolerance ( Ц m ) |
L ±0.3 (Mm) |
D (Mm) |
H (Mm) |
PCD (Mm) |
K (Mm) |
W (Mm) |
A (Mm) |
F (Mm) |
Connecting hole (Mm) |
Dynamic Ca N |
Static Co N |
|||||
| LMF6LUU | LMK6LUU | LMH6LUU | 4 | 6 | 0 -10 |
12 | 0 -13 |
35 | 28 | 5 | 20 | 22 | 18 | 20 | - | 3.5x6x3.1 | 15 | -3 | 323 | 529 | 31 |
| LMF8LUU | LMK8LUU | LMH8LUU | 4 | 8 | 15 | 45 | 32 | 5 | 24 | 25 | 21 | 24 | - | 3.5x6x3.1 | 15 | -3 | 431 | 784 | 51 | ||
| LMF10LUU | LMK10LUU | LMH10LUU | 4 | 10 | 19 | 0 -16 |
55 | 40 | 6 | 29 | 30 | 25 | 29 | - | 4.5x7x4.1 | 15 | -4 | 588 | 1100 | 84.5 | |
| LMF12LUU | LMK12LUU | LMH12LUU | 4 | 12 | 21 | 57 | 42 | 6 | 32 | 32 | 27 | 32 | - | 4.5x7x4.1 | 15 | -4 | 813 | 1570 | 91 | ||
| LMF13LUU | LMK13LUU | LMH13LUU | 4 | 13 | 23 | 61 | 43 | 6 | 33 | 34 | 29 | 33 | - | 4.5x7x4.1 | 15 | -4 | 813 | 1570 | 130 | ||
| LMF16LUU | LMK16LUU | LMH16LUU | 5 | 16 | 28 | 70 | 48 | 6 | 38 | 37 | 34 | 31 | 22 | 4.5x7x4.1 | 15 | -6 | 1230 | 2350 | 189 | ||
| LMF20LUU | LMK20LUU | LMH20LUU | 5 | 20 | 0 -12 |
32 | 0 -19 |
80 | 54 | 8 | 43 | 42 | 38 | 36 | 24 | 5.5x9x5.1 | 20 | -6 | 1400 | 2740 | 237 |
| LMF25LUU | LMK25LUU | LMH25LUU | 6 | 25 | 40 | 112 | 62 | 8 | 51 | 50 | 46 | 40 | 32 | 5.5x9x5.1 | 20 | -6 | 1560 | 3140 | 471.5 | ||
| LMF30LUU | LMK30LUU | LMH30LUU | 6 | 30 | 45 | 123 | 74 | 10 | 60 | 58 | 51 | 49 | 35 | 6.6x11x6.1 | 20 | -8 | 2490 | 5490 | 618 | ||
| LMF35LUU | LMK35LUU | - | 6 | 35 | 0 -15 |
52 | 0 -22 |
135 | 82 | 10 | 67 | 64 | - | - | - | 6.6x11x6.1 | 25 | -8 | 2650 | 6270 | 903 |
| LMF40LUU | LMK40LUU | - | 6 | 40 | 60 | 151 | 96 | 13 | 78 | 75 | - | - | - | 9x14x8.1 | 25 | -10 | 3430 | 8040 | 1456.5 | ||
| LMF50LUU | LMK50LUU | - | 6 | 50 | 80 | 192 | 116 | 13 | 98 | 92 | - | - | - | 9x14x8.1 | 25 | -13 | 6080 | 15900 | 3397.5 | ||
| LMF60LUU | LMK60LUU | - | 6 | 60 | 0/-20 | 90 | 0/-25 | 209 | 134 | 18 | 112 | 106 | - | - | - | 11x17x11.1 | 25 | -13 | 7550 | 20000 | 4043.5 |
