Two-way thrust ball bearing 54000 series

Category:

Thrust ball bearing

Thrust ball bearings are designed to withstand thrust loads during high-speed operation and are composed of washer-like ferrules with ball rolling raceway grooves. Since the ring is cushion-shaped, thrust ball bearings are divided into two types: flat-bottom seat cushion type and self-aligning spherical seat cushion type. In addition, this bearing can bear axial load, but not radial load.

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Thrust ball bearing

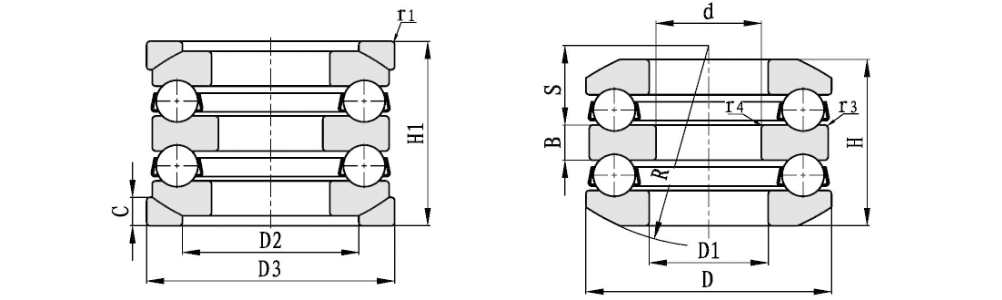

Model		Main dimensions (mm)													Rated load (kN)		Limit speed (rpm)		Shoulder Size (mm)				Weight (kg)
Bearing	Seat	d	D	H	r1 2min	r3 4min	D1	D2	D3	B	C	H1	R	S	Cr	Cor	Grease	Oil	From max	From max	ra max	rb max	Approx	Seat
54207	U207	30	62	37.8	1	0.3	37	48	65	8	7	42	50	21	35.5	67	3000	4000	35	48	1	0.3	0.42	0.057
54208	U208	30	68	38.6	1	0.6	42	55	72	9	7	44	56	25	46.8	98	2800	3800	40	55	1	0.6	0.56	0.07
54211	U211	45	90	49.6	1	0.6	57	72	95	10	9	55	72	32.5	61	134	1900	2800	55	72	1	0.6	1.02	0.15
54306	U306	25	60	41.3	1	0.3	32	45	62	9	7	46	50	19.5	38	65.5	2800	3800	30	45	1	0.3	0.553	0.056
54307	U307	30	68	47.2	1	0.3	37	52	72	10	7.5	52	56	21	50	88	2400	3400	35	52	1	0.3	0.802	0.084
54308	U308	30	78	54.1	1	0.6	42	60	82	12	8.5	59	64	23.5	61	112	2000	3000	40	60	1	0.6	1.05	0.12
54309	U309	35	85	56.3	1	0.6	47	65	90	12	10	62	64	21	76.1	140	1900	2800	45	65	1	0.6	1.25	0.17
54310	U310	40	95	64.7	1.1	0.6	52	72	100	14	11	70	72	23	86.5	170	1800	2600	50	72	1	0.6	1.85	0.23
54312	U312	50	110	70.7	1.1	0.6	62	85	115	15	11.5	78	90	36.5	101	208	1600	2200	60	85	1	0.6	2.6	0.31
54316	U316	65	140	86.1	1.5	1	82	110	145	18	15	95	112	45.5	160	360	1200	1700	80	110	1.5	1	5.05	0.57
54317	U317	70	150	92.5	1.5	1	88	115	155	19	17.5	105	112	39	186	415	1100	1600	85	115	1.5	1	6.35	0.81
