Two-way thrust ball bearing 52000 series
Category:
Thrust ball bearing
Thrust ball bearings are designed to withstand thrust loads during high-speed operation and are composed of washer-like ferrules with ball rolling raceway grooves. Since the ring is cushion-shaped, thrust ball bearings are divided into two types: flat-bottom seat cushion type and self-aligning spherical seat cushion type. In addition, this bearing can bear axial load, but not radial load.
Key words:
Thrust ball bearing

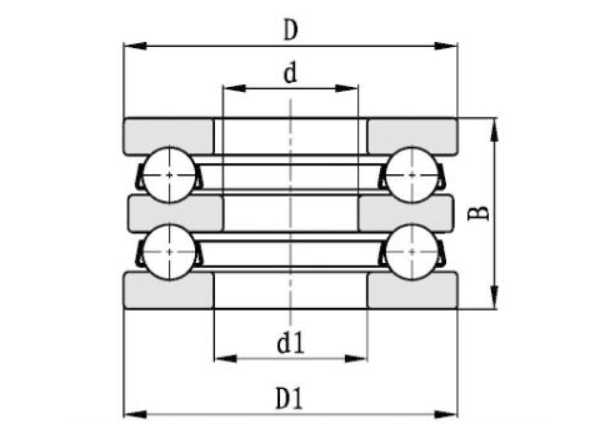

| Model | Main dimensions (mm) | Rated load (kN) | ||
| d | D | T | Ca | |
| 52202 | 10 | 32 | 22 | 16.5 |
| 52204 | 15 | 40 | 26 | 22.2 |
| 52205 | 20 | 47 | 28 | 27.8 |
| 52305 | 20 | 52 | 34 | 35.5 |
| 52206 | 25 | 52 | 29 | 28 |
| 52306 | 25 | 60 | 38 | 42.8 |
| 52207 | 30 | 62 | 34 | 39.2 |
| 52307 | 30 | 68 | 44 | 55.2 |
| 52208 | 30 | 68 | 36 | 47 |
| 52308 | 30 | 78 | 49 | 69.2 |
| 52209 | 35 | 73 | 37 | 47.8 |
| 52309 | 35 | 85 | 52 | 75.8 |
| 52210 | 40 | 78 | 39 | 48.5 |
| 52310 | 40 | 95 | 58 | 96.5 |
| 52211 | 45 | 90 | 45 | 67.5 |
| 52311 | 45 | 105 | 64 | 115 |
| 52212 | 50 | 95 | 46 | 73.5 |
| 52312 | 50 | 110 | 64 | 118 |
| 52213 | 55 | 100 | 47 | 74.8 |
| 52313 | 55 | 115 | 65 | 115 |
| 52215 | 60 | 110 | 47 | 74.8 |
| 52315 | 60 | 135 | 79 | 162 |
| 52216 | 65 | 115 | 48 | 83.8 |
| 52316 | 65 | 140 | 79 | 160 |
| 52217 | 70 | 125 | 55 | 102 |
| 52317 | 70 | 150 | 87 | 208 |
| 52218 | 75 | 135 | 62 | 115 |
| 52318 | 75 | 155 | 88 | 205 |
| 52220 | 85 | 150 | 67 | 132 |
| 52320 | 85 | 170 | 97 | 235 |
| 52222 | 95 | 160 | 67 | 138 |
| 52322 | 95 | 190 | 110 | 278 |
