Metric Tapered Roller Bearings

Category:

Tapered roller bearings

The cone angle of the outer ring raceway of the single row tapered roller bearing is between 10 ° and 19 °, which can bear the combined action of axial load and radial load at the same time. The larger the cone angle, the greater the ability to withstand axial loads. Large cone angle bearing, rear code plus B, cone angle between 25 ° ~ 29 °, it can withstand large axial load. In addition, single row tapered roller bearings can adjust the size of the clearance during installation. The outer ring (or inner ring) of the double row tapered roller bearing is a whole. The small end faces of the two inner rings (or outer rings) are similar, and there is a spacer in the middle. The clearance is adjusted by the thickness of the spacer, and the thickness of the spacer can also be used to adjust the pre-interference of the double row tapered roller bearing.

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Tapered roller bearings

Single row tapered roller bearings have an outer ring, its inner ring and a set of tapered rollers by a basket cage package into an inner ring assembly. The outer ring can be separated from the inner ring assembly. According to the ISO tapered roller bearing outline dimension standard, any standard type of tapered roller bearing outer ring or inner ring assembly should be able to achieve international interchange with the same type of outer ring or inner ring assembly. That is, in addition to the external dimensions and tolerances of the same type of outer ring, the cone angle and cone diameter of the inner ring assembly must also comply with the relevant provisions of interchange.
Generally, the taper angle of the outer ring raceway of the single row tapered roller bearing is between 10 ° and 19 °, which can bear the combined action of axial load and radial load at the same time. The larger the cone angle, the greater the ability to withstand axial loads. Large cone angle bearing, rear code plus B, cone angle between 25 ° ~ 29 °, it can withstand large axial load. In addition, single row tapered roller bearings can adjust the size of the clearance during installation.
The outer ring (or inner ring) of the double row tapered roller bearing is a whole. The small end faces of the two inner rings (or outer rings) are similar, and there is a spacer in the middle. The clearance is adjusted by the thickness of the spacer, and the thickness of the spacer can also be used to adjust the pre-interference of the double row tapered roller bearing.
Four-row tapered roller bearings, the performance of this kind of bearing is basically the same as that of double-row tapered roller bearings, but the radial load is greater than that of double-row tapered roller bearings, and the limit speed is slightly lower. It is mainly used for heavy machinery.
Multi-sealed double and four-row tapered roller bearings. The new design of the bearing is personalized, the traditional design method of the fully sealed bearing is changed, and the new sealing structure type combining sealing and dustproof is adopted to improve the sealing effect and the sealing performance. Multi-sealed double, four-row tapered roller bearings compared with open structure bearings, life increased by 20% to 40%; lubricant consumption reduced by 80%.

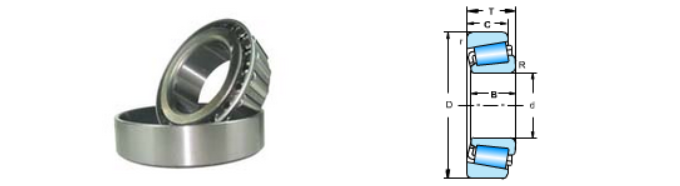

Metric Tapered Roller Bearings
Main dimensions (mm)			Rated load (kN)		Inner ring		Outer ring		Weight (Kg)	Model
d	D	T	Cr	Cor	B	R	C	r
17	40	13.25	20.5	20.3	12	1	11	1	0.08	30203
20	47	15.25	28.2	28.7	14	1	12	1	0.127	30204
25	52	16.25	31.5	34.0	15	1	13	1	0.154	30205
30	62	17.25	43.5	48.0	16	1	14	1	0.241	30206
35	72	18.25	55.5	61.5	17	1.5	15	1.5	0.344	30207
40	80	19.75	61.0	67.0	18	1.5	16	1.5	0.435	30208
45	85	20.75	67.5	78.5	19	1.5	16	1.5	0.495	30209
50	90	21.75	77.0	93.0	20	1.5	17	1.5	0.563	30210
55	100	22.75	93.0	111	21	2	18	1.5	0.74	30211
60	110	23.75	105	125	22	2	19	1.5	0.949	30212
65	120	24.75	123	148	23	2	20	1.5	1.18	30213
70	125	26.25	131	162	24	2	21	1.5	1.26	30214
75	130	27.25	139	175	25	2	22	1.5	1.41	30215
80	140	28.25	160	200	26	2.5	22	2	1.72	30216
85	150	30.5	183	232	28	2.5	24	2	2.14	30217
90	160	32.5	208	267	30	2.5	26	2	2.66	30218
95	170	34.5	226	290	32	3	27	2.5	3.07	30219
100	180	37	258	335	34	3	29	2.5	3.78	30220
15	42	14.25	23.2	20.8	13	1	11	1	0.098	30302
17	47	15.25	28.9	26.3	14	1	12	1	0.134	30303
20	52	16.25	35.5	34.0	16	1.5	13	1.5	0.176	30304
25	62	18.25	48.5	47.5	17	1.5	15	1.5	0.272	30305
30	72	20.75	60.0	61.0	19	1.5	16	1.5	0.408	30306
35	80	22.75	75.0	77.0	21	2	18	1.5	0.540	30307
40	90	25.25	91.5	102	23	2	20	1.5	0.769	30308
45	100	27.25	111	126	25	2	22	1.5	1.01	30309
50	110	29.25	133	152	27	2.5	23	2	1.31	30310
55	120	31.5	155	179	29	2.5	25	2	1.66	30311
60	130	33.5	180	210	31	3	26	2.5	2.06	30312
65	140	36	203	238	33	3	28	2.5	2.55	30313
70	150	38	230	272	35	3	30	2.5	3.06	30314
75	160	40	255	305	37	3	31	2.5	3.57	30315
80	170	42.5	291	350	39	3	33	2.5	4.41	30316
85	180	44.5	305	365	41	4	34	3	5.2	30317
90	190	46.5	335	405	43	4	36	3	6.03	30318
95	200	49.5	365	445	45	4	38	3	6.98	30319
100	215	51.5	410	500	47	4	39	3	8.56	30320
25	62	18.25	40.5	43.5	17	1.5	13	1.5	0.284	31305
30	72	20.75	48.5	51.5	19	1.5	14	1.5	0.398	31306
35	80	22.75	63.5	70.0	21	2	15	1.5	0.530	31307
40	90	25.25	77.0	85.5	23	2	17	1.5	0.738	31308
55	120	31.5	132	154	29	2.5	21	2	1.59	31311
65	140	36	173	204	33	3	23	2.5	2.42	31313
70	150	38	193	229	35	3	25	2.5	2.92	31314
75	160	40	215	256	37	3	26	2.5	3.47	31315
80	170	42.5	236	283	39	3	27	2.5	4.11	31316
85	180	44.5	247	293	41	4	28	3	4.85	31317
90	190	46.5	270	320	43	4	30	3	5.66	31318
95	200	49.5	296	355	45	4	32	3	6.47	31319
100	215	56.5	355	435	51	4	35	3	8.67	31320
22	44	15	27.0	31.5	15	0.6	11.5	0.6	0.106	320/22X
28	52	16	33.0	40.5	16	1	12	1	0.146	320/28X
32	58	17	37.0	46.5	17	1	13	1	0.181	320/32X
20	42	15	24.9	27.9	15	0.6	12	0.6	0.097	32004X
25	47	15	27.8	33.5	15	0.6	11.5	0.6	0.114	32005X
30	55	17	37.5	46.0	17	1	13	1	0.166	32006X
35	62	18	41.5	52.5	18	1	14	1	0.224	32007X
40	68	19	50.0	65.5	19	1	14.5	1	0.273	32008X
45	75	20	57.5	76.5	20	1	15.5	1	0.346	32009X
50	80	20	62.5	88.0	20	1	15.5	1	0.366	32010X
55	90	23	80.5	118	23	1.5	17.5	1.5	0.563	32011X
60	95	23	82.0	123	23	1.5	17.5	1.5	0.576	32012X
65	100	23	83.0	128	23	1.5	17.5	1.5	0.63	32013X
70	110	25	105	160	25	1.5	19	1.5	0.848	32014X
75	115	25	106	167	25	1.5	19	1.5	0.909	32015X
80	125	29	139	216	29	1.5	22	1.5	1.28	32016X
85	130	29	142	224	29	1.5	22	1.5	1.35	32017X
90	140	32	168	270	32	2	24	1.5	1.79	32018X
95	145	32	171	280	32	2	24	1.5	1.83	32019X
100	150	32	170	281	32	2	24	1.5	1.91	32020X
17	40	17.25	27.3	28.3	16	1	14	1	0.102	32203
20	47	19.25	36.5	39.5	18	1	15	1	0.16	32204
25	52	19.25	42.0	47.0	18	1	16	1	0.187	32205
30	62	21.25	54.5	64.0	20	1	17	1	0.301	32206
35	72	24.25	72.5	87.0	23	1.5	19	1.5	0.457	32207
40	80	24.75	79.5	93.5	23	1.5	19	1.5	0.558	32208
45	85	24.75	82.0	100	23	1.5	19	1.5	0.607	32209
50	90	24.75	87.5	109	23	1.5	19	1.5	0.648	32210
55	100	26.75	108	134	25	2	21	1.5	0.876	32211
60	110	29.75	130	164	28	2	24	1.5	1.18	32212
65	120	32.75	159	206	31	2	27	1.5	1.58	32213
70	125	33.25	166	220	31	2	27	1.5	1.68	32214
75	130	33.25	168	224	31	2	27	1.5	1.74	32215
80	140	35.25	199	265	33	2.5	28	2	2.18	32216
85	150	38.5	224	300	36	2.5	30	2	2.75	32217
90	160	42.5	262	360	40	2.5	34	2	3.49	32218
95	170	45.5	299	415	43	3	37	2.5	4.3	32219
100	180	49	330	465	46	3	39	2.5	5.12	32220
32	75	29.75	84.0	102	28	1.5	23	1.5	0.659	323/32X
20	52	22.25	46.5	48.5	21	1.5	18	1.5	0.245	32304
25	62	25.25	61.5	64.5	24	1.5	20	1.5	0.381	32305
30	72	28.75	81.0	90.0	27	1.5	23	1.5	0.583	32306
35	80	32.75	101	115	31	2	25	1.5	0.787	32307
40	90	35.25	122	150	33	2	27	1.5	1.08	32308
45	100	38.25	154	191	36	2	30	1.5	1.46	32309
50	110	42.25	184	232	40	2.5	33	2	1.92	32310
55	120	45.5	215	275	43	2.5	35	2	2.44	32311
60	130	48.5	244	315	46	3	37	2.5	3.02	32312
65	140	51	273	350	48	3	39	2.5	3.66	32313
70	150	54	310	405	51	3	42	2.5	4.46	32314
75	160	58	355	470	55	3	45	2.5	5.35	32315
80	170	61.5	395	525	58	3	48	2.5	6.41	32316
85	180	63.5	405	525	60	4	49	3	7.15	32317
90	190	67.5	450	595	64	4	53	3	8.57	32318
95	200	71.5	505	670	67	4	55	3	10.1	32319
100	215	77.5	570	770	73	4	60	3	12.7	32320
55	80	17	44.5	73.5	17	1	14	1	0.274	32911
60	85	17	51.0	83.0	17	1	14	1	0.296	32912
65	90	17	48.5	85.0	17	1	14	1	0.315	32913
70	100	20	68.5	110	20	1	16	1	0.487	32914
75	105	20	69.5	114	20	1	16	1	0.511	32915
80	110	20	72.0	121	20	1	16	1	0.54	32916
85	120	23	94.0	157	23	1.5	18	1.5	0.773	32917
90	125	23	97.5	168	23	1.5	18	1.5	0.817	32918
95	130	23	101	178	23	1.5	18	1.5	0.851	32919
100	140	25	121	206	25	1.5	20	1.5	1.14	32920
40	75	26	79.5	103	26	1.5	20.5	1.5	0.494	33108
45	80	26	84.5	115	26	1.5	20.5	1.5	0.542	33109
50	85	26	86.5	121	26	1.5	20	1.5	0.58	33110
55	95	30	111	155	30	1.5	23	1.5	0.846	33111
60	100	30	113	164	30	1.5	23	1.5	0.912	33112
65	110	34	144	211	34	1.5	26.5	1.5	1.28	33113
