GAC-T

Category:

Joint bearing

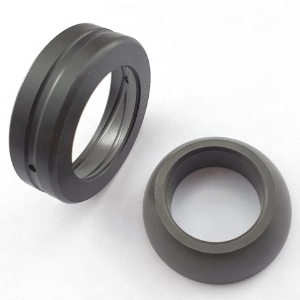

(Paragraph 1) Self-lubricating angular contact joint bearings: The inner and outer ring materials are bearing steel, quenched and phosphated. The sliding surface is self-lubricating, wear-resistant, low friction, self-aligning, and can be lubricated by drilling blind holes on the sliding surface of the inner ring and inlaid with solid powder metallurgy wear-resistant materials. It has the characteristics of high bearing capacity, impact resistance and high temperature resistance. Suitable for mechanical mechanisms that bear axial loads in a single direction or combined radial and axial loads in harsh environments. (Paragraph 2) Self-lubricating angular contact joint bearings, the inner and outer ring materials are bearing steel, quenched, the outer ring spherical surface is pasted with PTFE textile, and the inner ring spherical surface is plated with hard chromium. It has the characteristics of self-lubrication, wear resistance, self-aligning and low friction, and is suitable for mechanical mechanisms that bear radial load and axial load in a single direction.

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Joint bearing

(Paragraph 2) Self-lubricating angular contact joint bearings, the inner and outer ring materials are bearing steel, quenched, the outer ring spherical surface is pasted with PTFE textile, and the inner ring spherical surface is plated with hard chromium. It has the characteristics of self-lubrication, wear resistance, self-aligning and low friction, and is suitable for mechanical mechanisms that bear radial load and axial load in a single direction.

Bearing Model	Exterior dimension										Rated load		Weight ≈Kg
Bearing Model	d	D	B	C	T	dk	S	A	r1 min r2 min	Α ≈	dynamic load	static load	Weight ≈Kg
GAC25T	25	47	15	14	15	42	0.6	7.5	1	3.5	50	250	0.148
GAC28T	28	52	16	15	16	47	1	8	1	3	60	300	0.186
GAC30T	30	55	17	15	17	49.5	1.3	8.5	1	3	63	315	0.208
GAC32T	32	58	17	16	17	52	2	8.5	1	3	71	354	0.241
GAC35T	35	62	18	16	18	55.5	2.1	9	1	3	78	390	0.268
GAC40T	40	68	19	17	19	62	2.8	9.5	1	3	92	463	0.327
GAC45T	45	75	20	18	20	68.5	3.5	10	1	3	108	540	0.416
GAC50T	50	80	20	19	20	74	4.3	10	1	3	123	618	0.455
GAC55T	55	90	23	20	23	82	5	11.5	1.1	3	144	721	0.645
GAC60T	60	95	23	21	23	88.5	5.7	11.5	1.1	3	163	817	0.714
GAC65T	65	100	23	22	23	93.5	6.5	11.5	1.1	2.5	180	905	0.759
GAC70T	70	110	25	23	25	102	7.2	12.5	1.1	2.5	206	1030	1.04
GAC75T	75	115	25	24	25	107	7.9	12.5	1.1	2.5	220	1129	1.12
GAC80T	80	125	29	25.5	29	115	8.6	14.5	1.1	2.5	258	1290	1.54
GAC85T	85	130	29	26.5	29	122	9.4	14.5	1.1	2.5	284	1422	1.61
GAC90T	90	140	32	28	32	128.5	10.1	16	1.5	2.5	316	1580	2.09
GAC95T	95	145	32	29.5	32	135	10.8	16	1.5	2.5	350	1750	2.22
GAC100T	100	150	32	31	32	141	11.6	16	1.5	2	384	1923	2.34
GAC105T	105	160	35	32.5	35	148	12.3	17.5	2	2	423	2116	2.93
GAC110T	110	170	38	34	38	155	13	19	2	2	463	2318	3.68
GAC120T	120	180	38	37	38	168	14.5	19	2	2	547	2735	3.97
GAC130T	130	200	45	43	45	188	18	19	2.5	1	710	3550	5.92
GAC140T	140	210	45	43	45	198	19	19	2.5	1	740	3740	6.33
GAC150T	150	225	48	46	48	211	20	20.5	3	1	850	4270	8.01
GAC160T	160	240	51	49	51	225	20	22	3	1	970	4850	9.42
GAC170T	170	260	57	55	57	246	21	27	3	1	1190	5950	12.3
GAC180T	180	280	64	61	64	260	21	28	3	1	1395	6970	17.4
GAC190T	190	290	64	62	64	275	26	30	3	1.5	1500	7500	18.2
GAC200T	200	310	70	66	70	290	26	30	3	1	1680	8420	22.5
GAC220T	X	X	X	X	X	X	X	X	X	X	X	X	X
GAC240T	X	X	X	X	X	X	X	X	X	X	X	X	X
GAC260T	X	X	X	X	X	X	X	X	X	X	X	X	X
GAC280T	X	X	X	X	X	X	X	X	X	X	X	X	X
GAC300T	X	X	X	X	X	X	X	X	X	X	X	X	X
GAC320T	X	X	X	X	X	X	X	X	X	X	X	X	X
