SI-ET-2RS/SA-ET-2RS

Category:

Rod end joint bearing

The self-lubricating assembled rod end joint bearing is assembled by the rod end body and the self-lubricating radial joint bearing GE…C or GE…ET-2RS. The rod end body material is carbon steel, and the surface is galvanized; no lubrication is required, and it has a large bearing capacity, The advantages of convenient installation and disassembly and simplified mechanism.

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Rod end joint bearing

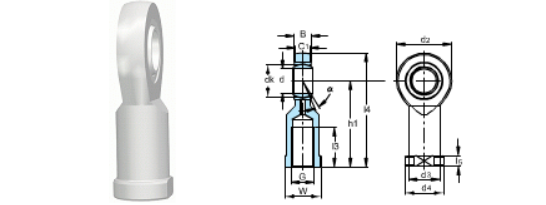

Rod End Joint Bearings (SI-ET-2RS Series)
Main dimensions (mm)															Weight	Model
d	B	dk	C1 max	d2 max	G 6H	h1	l3 min	l4 max	l5 max	W	d3 max	d4 max	rs min	α °	Kg
35	25	47	22	82	M36× 3	125	60	166	15	55	48	58	0.6	6	1.5	SI35ET-2RS
40	28	53	24	92	M39× 3	142	65	188	18	60	52	65	0.6	7	2.1	SI40ET-2RS
45	32	60	28	102	M42 × 3	145	65	196	20	65	58	70	0.6	7	2.7	SI45ET-2RS
50	35	66	31	112	M45× 3	160	68	216	20	70	62	75	0.6	6	3.5	SI50ET-2RS
60	44	80	39	135	M52 × 3	175	70	242.5	20	80	70	88	1	6	5.6	SI60ET-2RS
70	49	92	43	160	M56 × 4	200	80	280	20	85	80	98	1	6	8.3	SI70ET-2RS
80	55	105	48	180	M64 × 4	230	85	320	25	95	95	110	1	6	13	SI80ET-2RS

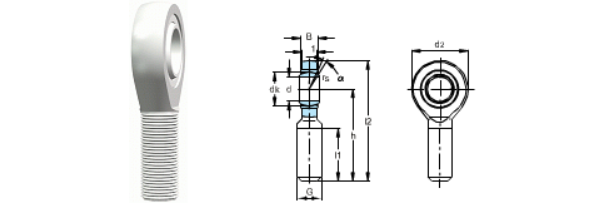

Rod End Joint Bearings (SA...ET-2RS Series)
Main dimensions (mm)											Weight	Model
d	B	dk	C1 max	d2 max	G 6g	h	l1 min	l2 max	rs min	α °	Kg
35	25	47	22	82	M36× 3	140	82	181	0.6	6	1.4	SA35ET-2RS
40	28	53	24	92	M39× 3	150	86	196	0.6	7	1.8	SA40ET-2RS
45	32	60	28	102	M42 × 3	163	92	214	0.6	7	2.5	SA45ET-2RS
50	35	66	31	112	M45× 3	185	104	241	0.6	6	3.6	SA50ET-2RS
60	44	80	39	135	M52 × 3	210	115	277.5	1	6	5.7	SA60ET-2RS
70	49	92	43	160	M56 × 4	235	125	315	1	6	7.9	SA70ET-2RS
80	55	105	48	180	M64 × 4	270	140	360	1	6	12	SA80ET-2RS
