SI-C/SA-C

Category:

Rod end joint bearing

The self-lubricating assembled rod end joint bearing is assembled by the rod end body and the self-lubricating radial joint bearing GE…C or GE…ET-2RS. The rod end body material is carbon steel, and the surface is galvanized; no lubrication is required, and it has a large bearing capacity, The advantages of convenient installation and disassembly and simplified mechanism.

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Rod end joint bearing

Rod end plain bearings (SI...C series)
Main dimensions (mm)															Weight	Model
d	B	dk	C1 max	d2 max	G 6H	h1	l3 min	l4 max	l5 max	W	d3 max	d4 max	rs min	α °	Kg
5	6	10	4.5	21	M5	30	11	40.5	5	10	10	13	0.3	13	0.016	SI5C
6	6	10	4.5	21	M6	30	11	40.5	5	11	11	13	0.3	13	0.017	SI6C
8	8	13	6.5	24	M8	36	15	48	5	13	13	16	0.3	15	0.035	SI8C
10	9	16	7.5	29	M10	43	15	57.5	6.5	16	16	19	0.3	12	0.061	SI10C
12	10	18	8.5	34	M12	50	18	67	7	18	19	22	0.3	10	0.096	SI12C
15	12	22	10.5	40	M14	61	21	81	8	21	21	26	0.3	8	0.16	SI15C
17	14	25	11.5	46	M16	67	24	90	10	27	25	29	0.3	10	0.23	SI17C
20	16	29	13.5	53	M20 × 1.5	77	30	103.5	10	30	28	34	0.3	9	0.32	SI20C
25	20	35.5	18	64	M24 × 2	94	36	126	12	36	35	42	0.6	7	0.62	SI25C
30	22	40.7	20	73	M30 × 2	110	45	146.5	15	46	42	50	0.6	6	0.97	SI30C

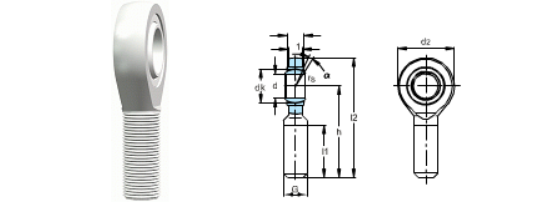

Rod end plain bearings (SA...C series)
Main dimensions (mm)											Weight	Model
d	B	dk	C1 max	d2 max	G 6g	h	l1 min	l2 max	rs min	α °	Kg
5	6	10	4.5	21	M5	36	16	46.5	0.3	13	0.011	SA5C
6	6	10	4.5	21	M6	36	16	46.5	0.3	13	0.013	SA6C
8	8	13	6.5	24	M8	42	21	54	0.3	15	0.026	SA8C
10	9	16	7.5	29	M10	48	26	62.5	0.3	12	0.044	SA10C
12	10	18	8.5	34	M12	54	28	71	0.3	10	0.066	SA12C
15	12	22	10.5	40	M14	63	34	83	0.3	8	0.12	SA15C
17	14	25	11.5	46	M16	69	36	92	0.3	10	0.17	SA17C
20	16	29	13.5	53	M20 × 1.5	78	43	104.5	0.3	9	0.28	SA20C
25	20	35.5	18	64	M24 × 2	94	53	126	0.6	7	0.51	SA25C
30	22	40.7	20	73	M30 × 2	110	65	146.5	0.6	6	0.84	SA30C
