SIZJ/SAZJ

Category:

Rod end joint bearing

The rod end body of the self-lubricating assembled rod end joint bearing is made of carbon steel with galvanized surface; the outer ring material is bronze, and the sliding surface is lined with PTFE composite material without lubrication: the inner ring material is bearing steel, and the spherical surface is plated with hard chromium. The advantages of large carrying capacity, convenient installation and disassembly, and simplified mechanism.

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Rod end joint bearing

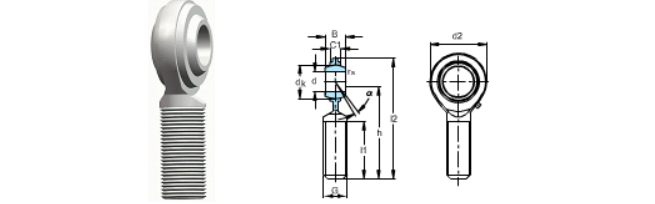

Rod End Joint Bearings (SIZJ Series)
Main dimensions (mm)															Weight	Model
d	B	dk	C1 max	d2 max	G (inch)	h1	l3 min	l4 max	l5 max	W	d3 max	d4 max	rs min	α °	Kg
4.83	7.92	11.1	5.94	15.88	10-32	26.97	12.7	34.93	4.75	7.92	7.54	10.31	0.3	10	0.018	SIZJ4
6.35	9.53	12.7	6.35	19.05	1/4-28	33.32	15.88	42.85	4.75	9.53	9.15	11.91	0.3	13.5	0.023	SIZJ6
7.94	11.1	15.88	7.92	22.23	5/16-24	34.93	15.88	46.02	4.75	11.1	10.72	12.7	0.3	11	0.036	SIZJ7
9.53	12.7	18.26	9.12	25.4	3/8-24	41.28	19.05	53.98	6.35	14.27	13.89	17.45	0.6	11	0.059	SIZJ9
11.11	14.27	20.62	10.31	28.58	7/16-20	46.02	22.23	60.33	6.35	15.88	15.49	19.05	0.6	10.5	0.082	SIZJ11
12.7	15.88	23.81	11.5	33.32	1/2-20	53.98	25.4	70.64	6.35	19.05	18.67	22.23	0.6	10	0.132	SIZJ12
15.88	19.05	28.58	12.29	38.1	5/8-18	63.5	31.75	82.55	7.92	22.23	21.84	25.4	0.6	13	0.195	SIZJ15
19.05	22.23	33.32	15.06	44.45	3/4-16	73.03	34.93	95.25	7.92	25.4	25.02	28.58	0.6	12	0.295	SIZJ19

Rod End Joint Bearings (SAZJ Series)
Main dimensions (mm)											Weight	Model
d	B	dk	C1 max	d2 max	G (inch)	h	l1 min	l2 max	rs min	α °	Kg
4.83	7.92	11.1	5.94	15.88	10-32	31.75	19.05	39.7	0.3	10	0.014	SAZJ4
6.35	9.53	12.7	6.35	19.05	1/4-28	39.67	25.4	49.2	0.3	13.5	0.018	SAZJ6
7.94	11.1	15.88	7.92	22.23	5/16-24	47.63	31.75	58.72	0.3	11	0.032	SAZJ7
9.53	12.7	18.26	9.12	25.4	3/8-24	49.23	31.75	61.93	0.6	11	0.05	SAZJ9
11.11	14.27	20.62	10.31	28.58	7/16-20	53.98	34.93	68.28	0.6	10.5	0.068	SAZJ11
12.7	15.88	23.81	11.05	33.32	1/2-20	61.93	38.1	78.59	0.6	10	0.11	SAZJ12
15.88	19.05	28.58	12.29	38.1	5/8-18	66.68	41.28	85.73	0.6	13	0.16	SAZJ15
19.05	22.23	33.32	15.06	44.45	3/4-16	73.03	44.45	95.25	0.6	12	0.26	SAZJ19

Rod end joint bearing
