SAZP...S
Category:
Rod end joint bearing
The rod end body of the self-lubricating assembled rod end joint bearing is made of carbon steel with galvanized surface; the outer ring material is bronze, and the sliding surface is lined with PTFE composite material without lubrication: the inner ring material is bearing steel, and the spherical surface is plated with hard chromium. The advantages of large carrying capacity, convenient installation and disassembly, and simplified mechanism.
Key words:
Rod end joint bearing

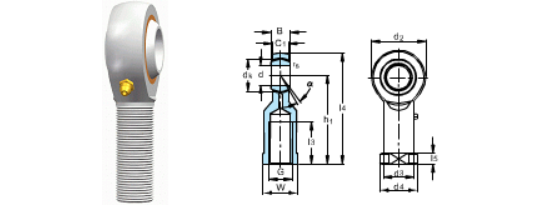

| ROD END JOINT BEARINGS (SAZP...S SERIES) | ||||||||||||
| Main dimensions (mm) | Weight | Model | ||||||||||
| d | B | dk | C1 max |
d2 max |
G (inch) |
h | l1 min |
l2 max |
rs min |
α ° | Kg | |
| 4.83 | 7.92 | 11.1 | 6.35 | 15.88 | 10-32 | 31.75 | 19.05 | 39.7 | 0.3 | 10 | 0.013 | SAZP4S |
| 6.35 | 9.53 | 12.7 | 7.14 | 19.05 | 1/4-28 | 39.67 | 25.4 | 49.2 | 0.3 | 13 | 0.022 | SAZP6S |
| 7.94 | 11.1 | 15.88 | 8.74 | 22.23 | 5/16-24 | 47.63 | 31.75 | 58.72 | 0.3 | 10 | 0.037 | SAZP7S |
| 9.53 | 12.7 | 18.26 | 10.31 | 25.4 | 3/8-24 | 49.23 | 31.75 | 61.93 | 0.6 | 9 | 0.055 | SAZP9S |
| 11.11 | 14.27 | 20.62 | 11.1 | 28.58 | 7/16-20 | 53.98 | 34.93 | 68.28 | 0.6 | 11 | 0.078 | SAZP11S |
| 12.7 | 15.88 | 23.81 | 12.7 | 33.32 | 1/2-20 | 61.93 | 38.1 | 78.59 | 0.6 | 9 | 0.012 | SAZP12S |
| 15.88 | 19.05 | 28.58 | 14.27 | 38.1 | 5/8-18 | 66.68 | 41.28 | 85.73 | 0.6 | 11 | 0.18 | SAZP15S |
| 19.05 | 22.23 | 33.32 | 17.45 | 44.45 | 3/4-16 | 73.03 | 44.45 | 95.25 | 0.6 | 10 | 0.29 | SAZP19S |
| 25.4 | 34.93 | 47.63 | 25.4 | 69.85 | 5/4-12 | 104.78 | 53.98 | 139.7 | 0.6 | 14 | 1.1 | SAZP25S |
