Rod end joint bearing

The rod end body of the self-lubricating assembled rod end joint bearing is made of carbon steel with galvanized surface; the outer ring material is bronze, and the sliding surface is lined with PTFE composite material without lubrication: the inner ring material is bearing steel, and the spherical surface is plated with hard chromium. The advantages of large carrying capacity, convenient installation and disassembly, and simplified mechanism.

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Rod end joint bearing

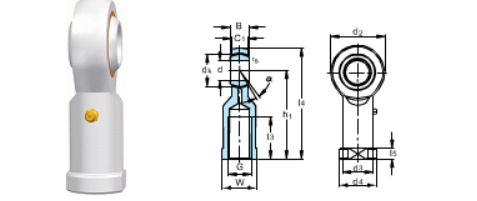

Rod end plain bearings (SIBP...S series)
Main dimensions (mm)															Weight	Model
d	B	dk	C1 max	d2 max	G 6H	h1	l3 min	l4 max	l5 max	W	d3 max	d4 max	rs min	α °	Kg
5	8	11.112	6	16	M5	27	14	35	4	9	9	11	0.3	13	0.016	SIBP5S
6	9	12.7	6.75	18	M6	30	14	39	5	11	10	13	0.3	13	0.026	SIBP6S
8	12	15.88	9	22	M8	36	17	47	5	14	12.5	16	0.3	14	0.044	SIBP8S
10	14	19.05	10.5	26	M10	43	21	56	6.5	17	15	19	0.6	14	0.072	SIBP10S
12	16	22.23	12	30	M12	50	24	65	6.5	19	17.5	22	0.6	13	0.108	SIBP12S
14	19	25.4	13.5	34	M14	57	27	74	8	22	20	25	0.6	16	0.161	SIBP14S
16	21	28.58	15	38	M16	64	33	83	8	22	22	27	0.6	15	0.225	SIBP16S
18	23	31.75	16.5	42	M18 × 1.5	71	36	92	10	27	25	31	0.6	15	0.295	SIBP18S
20	25	34.93	18	46	M20 × 1.5	77	40	100	10	30	27.5	34	0.6	15	0.382	SIBP20S
22	28	38.1	20	50	M22 × 1.5	84	43	109	12	32	30	37	0.6	15	0.488	SIBP22S
25	31	42.86	22	60	M24 × 2	94	48	124	12	36	33.5	42	0.6	15	0.749	SIBP25S
28	35	47.63	25	66	M27 × 2	103	53	136	12	41	37	46	0.6	15	0.949	SIBP28S
30	37	50.8	25	70	M30 × 2	110	56	145	15	41	40	50	0.6	17	1.13	SIBP30S
