63/Z,ZZ,RS,2RS,2RD, 2RK Series

Category:

Deep groove ball bearing

The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of cages. There are two types of deep groove ball bearings: single row and double row. The deep groove ball structure is also divided into two types: seal and open structure. Open type refers to the bearing without seal structure. Sealed deep groove ball is divided into dust seal and oil seal. The dust-proof sealing cover is stamped from steel plate, which simply prevents dust from entering the bearing raceway. The oil-proof type is a contact type oil seal, which can effectively prevent the grease in the bearing from overflowing Deep groove ball bearings can be used in gearboxes, instruments, motors, household appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo, etc.
Manager Li +86-13561234220
info@femabearing.com
Related Products
Online message

Key words:

Deep groove ball bearing

Deep groove ball bearings can be used in gearboxes, instruments, motors, household appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo, etc.

Protective cover/closure: open ball bearing, Z, ZZ, RS, 2RS, 2RZ

Ball bearing snap ring: N, NR

公差：ABEC-1、ABEC-3、ABEC-5、ABEC-7

Vibration level: V3, V2, V1

Radial clearance: C0, C2, C3, C4

Material: GCR15

Version

With rubber seal on one or both sides RS, 2RS

With metal shield Z and ZZ (2Z) on one or both sides

Outer ring with stop groove N

Outer ring with stop groove, outer stop ring NR

This type of bearing is the most representative and widely used bearing. In addition to radial loads, it can withstand axial loads in both directions even at high speeds. They can be achievedLow noiseandLow vibration. Bearings with metal dust caps and rubber seals are pre-lubricated with some grease. Bearings with snap ring and outer ring flange. Deep groove ball bearings with filling slots are the same size as standard bearings.Filled groove bearings have a higher radial load carrying capacity than non-filled groove bearings.

• Applies to veryHigh speed

• Ideal for medium to high radial and axial loads in one or both directions

• Various seal and grease variants available for different operating conditions

• Multiple clearance and tolerance classes available for different working conditions

• Series: 600, 6000, 6200, 6300, 6400, 1600;Thin ring: 61800, 61900

• Application examples: electric motors, general machinery, industrial gearboxes, pumps, agricultural machinery, etc.

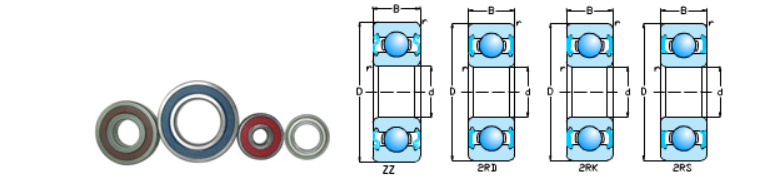

Single row with dust cover, sealing ring type (63/Z,ZZ,RS,2RS,2RD, 2RK series)
Main dimensions (mm) Rated load (kN) Permissible speed (rpm) Weight (Kg) Model
d D B rs min Cr Cor grease lubrication
22 56 16 1.1 1,880 945 11,000 0.176 63/22-2RS
22 56 16 1.1 1,880 945 11,000 0.176 63/22-2RSC3
28 68 18 1.1 2,730 1,430 8,900 0.284 63/28-2RS
28 68 18 1.1 2,730 1,430 8,900 0.284 63/28-2RSC3
10 35 11 0.6 8.20 3.50 23,000 0.053 6300-2RS
10 35 11 0.6 8.20 3.50 23,000 0.053 6300-2RSC3
10 35 11 0.6 8.20 3.50 27,000 0.053 6300-RS
10 35 11 0.6 8.20 3.50 27,000 0.053 6300-RSC3
12 37 12 1 9.70 4.20 20,000 0.06 6301-2RS
12 37 12 1 9.70 4.20 20,000 0.06 6301-2RSC3
12 37 12 1 9.70 4.20 24,000 0.06 6301-RS
12 37 12 1 9.70 4.20 24,000 0.06 6301-RSC3
15 42 13 1 11.4 5.45 17,000 0.082 6302-2RS
15 42 13 1 11.4 5.45 17,000 0.082 6302-2RSC3
15 42 13 1 11.4 5.45 21,000 0.082 6302-RS
15 42 13 1 11.4 5.45 21,000 0.082 6302-RSC3
17 47 14 1 13.5 6.55 16,000 0.115 6303-2RS
17 47 14 1 13.5 6.55 16,000 0.115 6303-2RSC3
17 47 14 1 13.5 6.55 19,000 0.115 6303-RS
17 47 14 1 13.5 6.55 19,000 0.115 6303-RSC3
20 52 15 1.1 15.9 7.90 14,000 0.144 6304-2RS
20 52 15 1.1 15.9 7.90 14,000 0.144 6304-2RSC3
20 52 15 1.1 15.9 7.90 17,000 0.144 6304-RS
20 52 15 1.1 15.9 7.90 17,000 0.144 6304-RSC3
25 62 17 1.1 21.2 10.9 12,000 0.232 6305-2RS
25 62 17 1.1 21.2 10.9 12,000 0.232 6305-2RSC3
25 62 17 1.1 21.2 10.9 14,000 0.232 6305-RS
25 62 17 1.1 21.2 10.9 14,000 0.232 6305-RSC3
30 72 19 1.1 26.7 15.0 10,000 0.36 6306-2RS
30 72 19 1.1 26.7 15.0 10,000 0.36 6306-2RSC3
30 72 19 1.1 26.7 15.0 12,000 0.36 6306-RS
30 72 19 1.1 26.7 15.0 12,000 0.36 6306-RSC3
35 80 21 1.5 33.5 19.1 8,800 0.457 6307-2RS
35 80 21 1.5 33.5 19.1 8,800 0.457 6307-2RSC3
35 80 21 1.5 33.5 19.1 10,000 0.457 6307-RS
35 80 21 1.5 33.5 19.1 10,000 0.457 6307-RSC3
40 90 23 1.5 40.5 24.0 7,800 0.63 6308-2RS
40 90 23 1.5 40.5 24.0 7,800 0.63 6308-2RSC3
40 90 23 1.5 40.5 24.0 9,200 0.63 6308-RS
40 90 23 1.5 40.5 24.0 9,200 0.63 6308-RSC3
45 100 25 1.5 53.0 32.0 7,000 0.814 6309-2RS
45 100 25 1.5 53.0 32.0 7,000 0.814 6309-2RSC3
45 100 25 1.5 53.0 32.0 8,200 0.814 6309-RS
45 100 25 1.5 53.0 32.0 8,200 0.814 6309-RSC3
50 110 27 2 62.0 38.5 6,400 1.07 6310-2RS
50 110 27 2 62.0 38.5 6,400 1.07 6310-2RSC3
50 110 27 2 62.0 38.5 7,500 1.07 6310-RS
50 110 27 2 62.0 38.5 7,500 1.07 6310-RSC3
55 120 29 2 71.5 45.0 5,800 1.37 6311-2RS
55 120 29 2 71.5 45.0 5,800 1.37 6311-2RSC3
55 120 29 2 71.5 45.0 6,800 1.37 6311-RS
55 120 29 2 71.5 45.0 6,800 1.37 6311-RSC3
60 130 31 2.1 82.0 52.0 5,400 1.73 6312-2RS
60 130 31 2.1 82.0 52.0 5,400 1.73 6312-2RSC3
60 130 31 2.1 82.0 52.0 6,300 1.73 6312-RS
60 130 31 2.1 82.0 52.0 6,300 1.73 6312-RSC3
65 140 33 2.1 92.5 60.0 4,900 2.08 6313-2RS
65 140 33 2.1 92.5 60.0 4,900 2.08 6313-2RSC3
65 140 33 2.1 92.5 60.0 5,800 2.08 6313-RS
65 140 33 2.1 92.5 60.0 5,800 2.08 6313-RSC3
70 150 35 2.1 104 68.0 4,600 2.52 6314-2RS
70 150 35 2.1 104 68.0 4,600 2.52 6314-2RSC3
70 150 35 2.1 104 68.0 5,400 2.52 6314-RS
70 150 35 2.1 104 68.0 5,400 2.52 6314-RSC3
75 160 37 2.1 113 77.0 4,300 3.02 6315-2RS
75 160 37 2.1 113 77.0 4,300 3.02 6315-2RSC3
75 160 37 2.1 113 77.0 5,000 3.02 6315-RS
75 160 37 2.1 113 77.0 5,000 3.02 6315-RSC3
80 170 39 2.1 123 86.5 4,000 3.59 6316-2RS
80 170 39 2.1 123 86.5 4,000 3.59 6316-2RSC3
80 170 39 2.1 123 86.5 4,700 3.59 6316-RS
80 170 39 2.1 123 86.5 4,700 3.59 6316-RSC3
85 180 41 3 133 97.0 3,800 4.23 6317-2RS
85 180 41 3 133 97.0 3,800 4.23 6317-2RSC3
85 180 41 3 133 97.0 4,500 4.23 6317-RS
85 180 41 3 133 97.0 4,500 4.23 6317-RSC3
90 190 43 3 143 107 3,600 4.91 6318-2RS
90 190 43 3 143 107 3,600 4.91 6318-2RSC3
90 190 43 3 143 107 4,200 4.91 6318-RS
90 190 43 3 143 107 4,200 4.91 6318-RSC3
95 200 45 3 153 119 3,300 5.67 6319-2RS
95 200 45 3 153 119 3,300 5.67 6319-2RSC3
95 200 45 3 153 119 3,900 5.67 6319-RS
95 200 45 3 153 119 3,900 5.67 6319-RSC3
100 215 47 3 173 141 3,200 7 6320-2RS
100 215 47 3 173 141 3,200 7 6320-2RSC3
100 215 47 3 173 141 3,700 7 6320-RS
100 215 47 3 173 141 3,700 7 6320-RSC3
105 225 49 3 184 153 3,000 8.05 6321-2RS
105 225 49 3 184 153 3,000 8.05 6321-2RSC3
105 225 49 3 184 153 3,600 8.05 6321-RS
105 225 49 3 184 153 3,600 8.05 6321-RSC3
110 240 50 3 205 179 2,900 9.54 6322-2RS
110 240 50 3 205 179 2,900 9.54 6322-2RSC3
110 240 50 3 205 179 3,400 9.54 6322-RS
110 240 50 3 205 179 3,400 9.54 6322-RSC3
32 75 20 1.1 3,050 1,730 7,700 0.382 63/32-2RS
32 75 20 1.1 3,050 1,730 7,700 0.382 63/32-2RSC3
32 75 20 1.1 3,050 1,730 7,700 0.382 63/32-ZZ
32 75 20 1.1 3,050 1,730 7,700 0.382 63/32-ZZC3
110 240 50 3 205 179 3,400 9.54 6322-Z
110 240 50 3 205 179 3,400 9.54 6322-ZC3
110 240 50 3 205 179 2,900 9.54 6322-ZZ
110 240 50 3 205 179 2,900 9.54 6322-ZZC3
110 240 50 3 205 179 2,900 9.54 6322-ZZC3P6QE6
105 225 49 3 184 153 3,600 8.05 6321-Z
105 225 49 3 184 153 3,600 8.05 6321-ZC3
105 225 49 3 184 153 3,000 8.05 6321-ZZ
105 225 49 3 184 153 3,000 8.05 6321-ZZC3
105 225 49 3 184 153 3,000 8.05 6321-ZZC3P6QE6
100 215 47 3 173 141 3,700 7 6320-Z
100 215 47 3 173 141 3,700 7 6320-ZC3
100 215 47 3 173 141 3,200 7 6320-ZZ
100 215 47 3 173 141 3,200 7 6320-ZZC3
100 215 47 3 173 141 3,200 7 6320-ZZC3P6QE6
95 200 45 3 153 119 3,900 5.67 6319-Z
95 200 45 3 153 119 3,900 5.67 6319-ZC3
95 200 45 3 153 119 3,300 5.67 6319-ZZ
95 200 45 3 153 119 3,300 5.67 6319-ZZC3
95 200 45 3 153 119 3,300 5.67 6319-ZZC3P6QE6
90 190 43 3 143 107 4,200 4.91 6318-Z
90 190 43 3 143 107 4,200 4.91 6318-ZC3
90 190 43 3 143 107 3,600 4.91 6318-ZZ
90 190 43 3 143 107 3,600 4.91 6318-ZZC3
90 190 43 3 143 107 3,600 4.91 6318-ZZC3P6QE6
85 180 41 3 133 97.0 4,500 4.23 6317-Z
85 180 41 3 133 97.0 4,500 4.23 6317-ZC3
85 180 41 3 133 97.0 3,800 4.23 6317-ZZ
85 180 41 3 133 97.0 3,800 4.23 6317-ZZC3
85 180 41 3 133 97.0 3,800 4.23 6317-ZZC3P6QE6
80 170 39 2.1 123 86.5 4,700 3.59 6316-Z
80 170 39 2.1 123 86.5 4,700 3.59 6316-ZC3
80 170 39 2.1 123 86.5 4,000 3.59 6316-ZZ
80 170 39 2.1 123 86.5 4,000 3.59 6316-ZZC3
80 170 39 2.1 123 86.5 4,000 3.59 6316-ZZC3P6QE6
75 160 37 2.1 113 77.0 5,000 3.02 6315-Z
75 160 37 2.1 113 77.0 5,000 3.02 6315-ZC3
75 160 37 2.1 113 77.0 4,300 3.02 6315-ZZ
75 160 37 2.1 113 77.0 4,300 3.02 6315-ZZC3
75 160 37 2.1 113 77.0 4,300 3.02 6315-ZZC3P6QE6
70 150 35 2.1 104 68.0 5,400 2.52 6314-Z
70 150 35 2.1 104 68.0 5,400 2.52 6314-ZC3
70 150 35 2.1 104 68.0 4,600 2.52 6314-ZZ
70 150 35 2.1 104 68.0 4,600 2.52 6314-ZZC3
70 150 35 2.1 104 68.0 4,600 2.52 6314-ZZC3P6QE6
65 140 33 2.1 92.5 60.0 5,800 2.08 6313-Z
65 140 33 2.1 92.5 60.0 5,800 2.08 6313-ZC3
65 140 33 2.1 92.5 60.0 4,900 2.08 6313-ZZ
65 140 33 2.1 92.5 60.0 4,900 2.08 6313-ZZC3
65 140 33 2.1 92.5 60.0 4,900 2.08 6313-ZZC3P6QE6
60 130 31 2.1 82.0 52.0 6,300 1.73 6312-Z
60 130 31 2.1 82.0 52.0 6,300 1.73 6312-ZC3
60 130 31 2.1 82.0 52.0 5,400 1.73 6312-ZZ
60 130 31 2.1 82.0 52.0 5,400 1.73 6312-ZZC3
60 130 31 2.1 82.0 52.0 5,400 1.73 6312-ZZC3P6QE6
55 120 29 2 71.5 45.0 6,800 1.37 6311-Z
55 120 29 2 71.5 45.0 6,800 1.37 6311-ZC3
55 120 29 2 71.5 45.0 5,800 1.37 6311-ZZ
55 120 29 2 71.5 45.0 5,800 1.37 6311-ZZC3
55 120 29 2 71.5 45.0 5,800 1.37 6311-ZZC3P6QE6
50 110 27 2 62.0 38.5 7,500 1.07 6310-Z
50 110 27 2 62.0 38.5 7,500 1.07 6310-ZC3
50 110 27 2 62.0 38.5 6,400 1.07 6310-ZZ
50 110 27 2 62.0 38.5 6,400 1.07 6310-ZZC3
50 110 27 2 62.0 38.5 6,400 1.07 6310-ZZC3P6QE6
45 100 25 1.5 53.0 32.0 8,200 0.814 6309-Z
45 100 25 1.5 53.0 32.0 8,200 0.814 6309-ZC3
45 100 25 1.5 53.0 32.0 7,000 0.814 6309-ZZ
45 100 25 1.5 53.0 32.0 7,000 0.814 6309-ZZC3
45 100 25 1.5 53.0 32.0 7,000 0.814 6309-ZZC3P6QE6
40 90 23 1.5 40.5 24.0 9,200 0.63 6308-Z
40 90 23 1.5 40.5 24.0 9,200 0.63 6308-ZC3
40 90 23 1.5 40.5 24.0 7,800 0.63 6308-ZZ
40 90 23 1.5 40.5 24.0 7,800 0.63 6308-ZZC3
40 90 23 1.5 40.5 24.0 7,800 0.63 6308-ZZC3P6QE6
35 80 21 1.5 33.5 19.1 10,000 0.457 6307-Z
35 80 21 1.5 33.5 19.1 10,000 0.457 6307-ZC3
35 80 21 1.5 33.5 19.1 8,800 0.457 6307-ZZ
35 80 21 1.5 33.5 19.1 8,800 0.457 6307-ZZC3
35 80 21 1.5 33.5 19.1 8,800 0.457 6307-ZZC3P6QE6
30 72 19 1.1 26.7 15.0 12,000 0.36 6306-Z
30 72 19 1.1 26.7 15.0 12,000 0.36 6306-ZC3
30 72 19 1.1 26.7 15.0 10,000 0.36 6306-ZZ
30 72 19 1.1 26.7 15.0 10,000 0.36 6306-ZZC3
30 72 19 1.1 26.7 15.0 10,000 0.36 6306-ZZC3P6QE6
25 62 17 1.1 21.2 10.9 14,000 0.232 6305-Z
25 62 17 1.1 21.2 10.9 14,000 0.232 6305-ZC3
25 62 17 1.1 21.2 10.9 12,000 0.232 6305-ZZ
25 62 17 1.1 21.2 10.9 12,000 0.232 6305-ZZC3
25 62 17 1.1 21.2 10.9 12,000 0.232 6305-ZZC3P6QE6
20 52 15 1.1 15.9 7.90 17,000 0.144 6304-Z
20 52 15 1.1 15.9 7.90 17,000 0.144 6304-ZC3
20 52 15 1.1 15.9 7.90 14,000 0.144 6304-ZZ
20 52 15 1.1 15.9 7.90 14,000 0.144 6304-ZZC3
20 52 15 1.1 15.9 7.90 14,000 0.144 6304-ZZC3P6QE6
17 47 14 1 13.5 6.55 19,000 0.115 6303-Z
17 47 14 1 13.5 6.55 19,000 0.115 6303-ZC3
17 47 14 1 13.5 6.55 16,000 0.115 6303-ZZ
17 47 14 1 13.5 6.55 16,000 0.115 6303-ZZC3
17 47 14 1 13.5 6.55 16,000 0.115 6303-ZZC3P6QE6
15 42 13 1 11.4 5.45 21,000 0.082 6302-Z
15 42 13 1 11.4 5.45 21,000 0.082 6302-ZC3
15 42 13 1 11.4 5.45 17,000 0.082 6302-ZZ
15 42 13 1 11.4 5.45 17,000 0.082 6302-ZZC3
15 42 13 1 11.4 5.45 17,000 0.082 6302-ZZC3P6QE6
12 37 12 1 9.70 4.20 24,000 0.06 6301-Z
12 37 12 1 9.70 4.20 24,000 0.06 6301-ZC3
12 37 12 1 9.70 4.20 20,000 0.06 6301-ZZ
12 37 12 1 9.70 4.20 20,000 0.06 6301-ZZC3
12 37 12 1 9.70 4.20 20,000 0.06 6301-ZZC3P6QE6
10 35 11 0.6 8.20 3.50 27,000 0.053 6300-Z
10 35 11 0.6 8.20 3.50 27,000 0.053 6300-ZC3
10 35 11 0.6 8.20 3.50 23,000 0.053 6300-ZZ
10 35 11 0.6 8.20 3.50 23,000 0.053 6300-ZZC3
10 35 11 0.6 8.20 3.50 23,000 0.053 6300-ZZC3P6QE6
28 68 18 1.1 2,730 1,430 8,900 0.284 63/28-ZZ
28 68 18 1.1 2,730 1,430 8,900 0.284 63/28-ZZC3
22 56 16 1.1 1,880 945 11,000 0.176 63/22-ZZ
22 56 16 1.1 1,880 945 11,000 0.176 63/22-ZZC3
28 68 18 1.1 2,730 1,430 8,900 0.284 63/28-2RDC3P6QE6
32 75 20 1.1 3,050 1,730 7,700 0.382 63/32-2RDC3P6QE6
12 37 12 1 9.70 4.20 19,000 0.06 6301-2RDC3P6QE6
15 42 13 1 11.4 5.45 15,000 0.082 6302-2RDC3P6QE6
17 47 14 1 13.5 6.55 14,000 0.115 6303-2RDC3P6QE6
20 52 15 1.1 15.9 7.90 12,000 0.144 6304-2RDC3P6QE6
25 62 17 1.1 21.2 10.9 9,700 0.232 6305-2RDC3P6QE6

Online message

Submit Message
%{tishi_zhanwei}%
