SSUCP200 Series

Category:

Outer spherical bearing with seat

The material of stainless steel bearings usually refers to stainless steel, which is a corrosion-resistant material, usually including 304, 316, 440 and other stainless steel grades. Among them, 304 stainless steel has better oxidation resistance and is suitable for the general environment; 316 stainless steel has better oxidation resistance and is suitable for some harsh environments; while 440 stainless steel has stronger corrosion resistance and is suitable for high load and high speed. Bearings under working conditions.

Manager Li +86-13561234220

info@femabearing.com

Related Products

Online message

Key words:

Outer spherical bearing with seat

Spherical stainless steel bearings are widely used in food processing machinery, electronic equipment, medical equipment, chemical industry, marine engineering, chemical fiber machinery, high-speed motors, automotive electrical appliances and other fields.

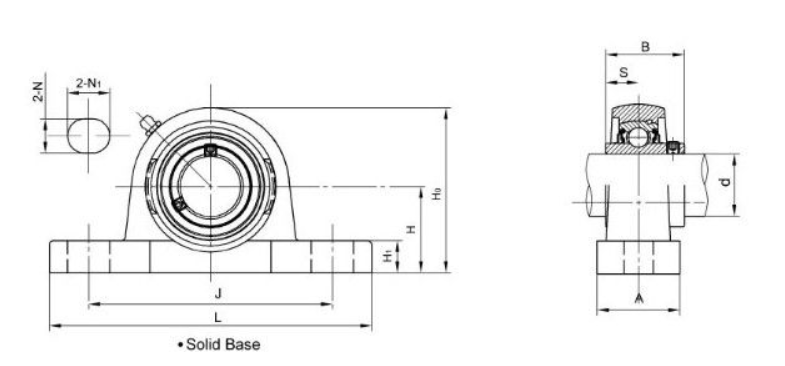

Unit No.	Shaft Dia		Dimensions/mm )										Bolt Size (mm)	Weight (Kg)
	d		H	L	J	A	N	N1	H1	Ho	B	s
	(in)	(Mm)	H	L	J	A	N	N1	H1	Ho	B	s
SSUCP204 A		20	33.3	127	95	30	13	19	14	64	31	12.7	M10	0.71
SSUCP204-12 A	3/4		33.3	127	95	30	13	19	14	64	31	12.7	M10	0.71
SSUCP205 A		25	36.5	140	105	30	13	19	15	70	34.1	14.3	M10	0.82
SSUCP205-14 A	7/8		36.5	140	105	30	13	19	15	70	34.1	14.3	M10	0.82
SSUCP205-15 A	15/16		36.5	140	105	30	13	19	15	70	34.1	14.3	M10	0.82
SSUCP205-16 A	1		36.5	140	105	30	13	19	15	70	34.1	14.3	M10	0.82
SSUCP206 A		30	42.9	165	121	36	17	21	16	82	38.1	15.9	M12	1.31
SSUCP206-17 A	1-1/16		42.9	165	121	36	17	21	16	82	38.1	15.9	M12	1.31
SSUCP206-18 A	1-1/8		42.9	165	121	36	17	21	16	82	38.1	15.9	M12	1.31
SSUCP206-19 A	1-3/16		42.9	165	121	36	17	21	16	82	38.1	15.9	M12	1.31
SSUCP206-20 A	1-1/4		42.9	165	121	36	17	21	16	82	38.1	15.9	M12	1.31
SSUCP207 A		35	47.6	167	127	38	17	21	17	92	42.9	17.5	M12	1.65
SSUCP207-20 A	1-1/4		47.6	167	127	38	17	21	17	92	42.9	17.5	M12	1.65
SSUCP207-21 A	1-5/16		47.6	167	127	38	17	21	17	92	42.9	17.5	M12	1.65
SSUCP207-22 A	1-3/8		47.6	167	127	38	17	21	17	92	42.9	17.5	M12	1.65
SSUCP207-23 A	1-7/16		47.6	167	127	38	17	21	17	92	42.9	17.5	M12	1.65
SSUCP208 A		40	49.2	184	137	40	17	21	18	98	49.2	19	M12	2.00
SSUCP208-24 A	1-1/2		49.2	184	137	40	17	21	18	98	49.2	19	M12	2.00
SSUCP208-25 A	1-9/16		49.2	184	137	40	17	21	18	98	49.2	19	M12	2.00
SSUCP209 A		45	54	190	146	40	17	21	20	105	49.2	19	M12	2.26
SSUCP209-26 A	1-5/8		54	190	146	40	17	21	20	105	49.2	19	M12	2.26
SSUCP209-27 A	1-11/16		54	190	146	40	17	21	20	105	49.2	19	M12	2.26
SSUCP209-28 A	1-3/4		54	190	146	40	17	21	20	105	49.2	19	M12	2.26
SSUCP210 A		50	57.2	206	159	45	20	22	22	112	51.6	19	M16	2.80
SSUCP210-30 A	1-7/8		57.2	206	159	45	20	22	22	112	51.6	19	M16	2.80
SSUCP210-31 A	1-15/16		57.2	206	159	45	20	22	22	112	51.6	19	M16	2.80
SSUCP210-32 A	2		57.2	206	159	45	20	22	22	112	51.6	19	M16	2.80
SSUCP211 A		55	63.5	218	171	50	20	22	22	126	55.6	22.2	M16	3.83
SSUCP211-32 A	2		63.5	218	171	50	20	22	22	126	55.6	22.2	M16	3.83
SSUCP211-34 A	2-1/8		63.5	218	171	50	20	22	22	126	55.6	22.2	M16	3.83
SSUCP211-35 A	2-3/16		63.5	218	171	50	20	22	22	126	55.6	22.2	M16	3.83
SSUCP212 A		60	69.9	238	184	60	20	25	25	137	65.1	25.4	M16	5.33
SSUCP212-36 A	2-1/4		69.9	238	184	60	20	25	25	137	65.1	25.4	M16	5.33
SSUCP212-38 A	2-3/8		69.9	238	184	60	20	25	25	137	65.1	25.4	M16	5.33
SSUCP212-39 A	2-7/16		69.9	238	184	60	20	25	25	137	65.1	25.4	M16	5.33

* Open / Close covers are optional.
* Grease fittings avaiable at 90°and 45°positions.
