SSUCFL200 Series

Category:

Outer spherical bearing with seat

The material of stainless steel bearings usually refers to stainless steel, which is a corrosion-resistant material, usually including 304, 316, 440 and other stainless steel grades. Among them, 304 stainless steel has better oxidation resistance and is suitable for the general environment; 316 stainless steel has better oxidation resistance and is suitable for some harsh environments; while 440 stainless steel has stronger corrosion resistance and is suitable for high load and high speed. Bearings under working conditions.

Manager Li +86-13561234220

info@femabearing.com

Related Products

Online message

Key words:

Outer spherical bearing with seat

Spherical stainless steel bearings are widely used in food processing machinery, electronic equipment, medical equipment, chemical industry, marine engineering, chemical fiber machinery, high-speed motors, automotive electrical appliances and other fields.

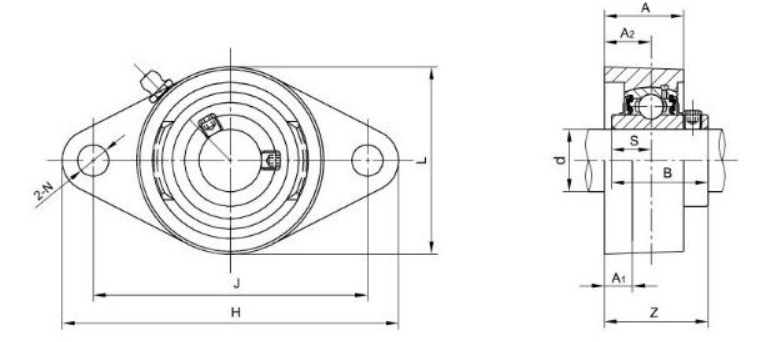

Unit No.	Shaft Dia		Dimensions(mm}										Bolt Size (mm)	Weight (Kg)
	d		H	J	A2	A1	A	N	L	z	B	S
	(in)	(Mm)	H	J	A2	A1	A	N	L	z	B	S
SSUCFL204 A		20	113	90	15	11	27	12	60	33.3	31	12.7	M10	0.50
SSUCFL204-12 A	3/4		113	90	15	11	27	12	60	33.3	31	12.7	M10	0.50
SSUCFL205 A		25	130	99	16	13	28	12.5	68	35.8	34.1	14.3	M14	0.71
SSUCFL205-14 A	7/8		130	99	16	13	28	12.5	68	35.8	34.1	14.3	M14	0.71
SSUCFL205-15 A	15/16		130	99	16	13	28	12.5	68	35.8	34.1	14.3	M14	0.71
SSUCFL205-16 A	1		130	99	16	13	28	12.5	68	35.8	34.1	14.3	M14	0.71
SSUCFL206 A		30	148	117	18	13	31	12.5	79	40.2	38.1	15.9	M14	1.04
SSUCFL206-17 A	1-1/16		148	117	18	13	31	12.5	79	40.2	38.1	15.9	M14	1.04
SSUCFL206-18 A	1-1/8		148	117	18	13	31	12.5	79	40.2	38.1	15.9	M14	1.04
SSUCFL206-19 A	1-3/16		148	117	18	13	31	12.5	79	40.2	38.1	15.9	M14	1.04
SSUCFL206-20 A	1-1/4		148	117	18	13	31	12.5	79	40.2	38.1	15.9	M14	1.04
SSUCFL207 A		35	161	130	19	14	34	14	90	44.4	42.9	17.5	M14	1.38
SSUCFL207-20 A	1-1/4		161	130	19	14	34	14	90	44.4	42.9	17.5	M14	1.38
SSUCFL207-21 A	1-5/16		161	130	19	14	34	14	90	44.4	42.9	17.5	M14	1.38
SSUCFL207-22 A	1-3/8		161	130	19	14	34	14	90	44.4	42.9	17.5	M14	1.38
SSUCFL207-23 A	1-7/16		161	130	19	14	34	14	90	44.4	42.9	17.5	M14	1.38
SSUCFL208 A		40	175	144	21	15	36	14	100	51.2	49.2	19	M14	1.73
SSUCFL208-24 A	1-1/2		175	144	21	15	36	14	100	51.2	49.2	19	M14	1.73
SSUCFL208-25 A	1-9/16		175	144	21	15	36	14	100	51.2	49.2	19	M14	1.73
SSUCFL209 A		45	187	148	22	16	38	16	108	52.2	49.2	19	M16	2.07
SSUCFL209-26 A	1-5/8		187	148	22	16	38	16	108	52.2	49.2	19	M16	2.07
SSUCFL209-27 A	1-11/16		187	148	22	16	38	16	108	52.2	49.2	19	M16	2.07
SSUCFL209-28 A	1-3/4		187	148	22	16	38	16	108	52.2	49.2	19	M16	2.07
SSUCFL210 A		50	195	157	22	16	40	16	115	54.6	51.6	19	M16	2.47
SSUCFL210-30 A	1-7/8		195	157	22	16	40	16	115	54.6	51.6	19	M16	2.47
SSUCFL210-31 A	1-15/16		195	157	22	16	40	16	115	54.6	51.6	19	M16	2.47
SSUCFL210-32 A	2		195	157	22	16	40	16	115	54.6	51.6	19	M16	2.47

Outer spherical bearing with seat
