TP-SUCPA200 Series

Category:

Outer spherical bearing with seat

The outer spherical ball bearing unit consists of a double-sealed single-row bearing and a bearing seat (cast iron bearing seat, stamped steel bearing seat, stainless steel bearing seat, engineering plastic bearing seat, ductile iron bearing seat, nickel-plated bearing seat, zinc alloy bearing seat, etc.).. Widely used in agricultural machinery, construction machinery, textile machinery, food machinery, conveying equipment, etc. Shell material: thermoplastic (engineering plastics), usually made of PBT, PTFE, PP... etc; Bearing Material: Stainless Steel AISI420 or AISI440

Manager Li +86-13406385480

info@femabearing.com

Related Products

Online message

Key words:

Outer spherical bearing with seat

Product Description:

1. Product material:
Shell material: thermoplastic (engineering plastics), usually made of PBT, PTFE, PP... etc;
Bearing Material: Stainless Steel AISI420 or AISI440

2. Bearing seat type:
1): Bearing housing unit SUCPPL200 series (bearing housing is PPL200 series, bearing is SUC200 series)
plastic bearing housing bearing housing bearing

2): Square flange unit SUCFPL200 series (bearing seat is FPL200 series) and SUC200 series bearings)
plastic bearing housing bearing

3): Tension unit SUCTPL200 series (bearing seat is TPL200 series, bearing is SUC200 series)
Plastic housing bearing 4): tap base

Bearing housing unit SUCPAPL200 series (bearing housing is PAPL200 series) series and SUC200 series bearings)
plastic bearing pedestal bearing pedestal

5): Diamond flange unit SUCFLPL200 series (FLPL200 series bearing seat and SUC200 series bearing)
plastic bearing housing bearing housing bearing

6): Bearing housing unit SUCFBPL series with three bolts (bearing housing FLPL200 series and SUC200 series bearings) FBPL200 series and SUC200 series bearings)

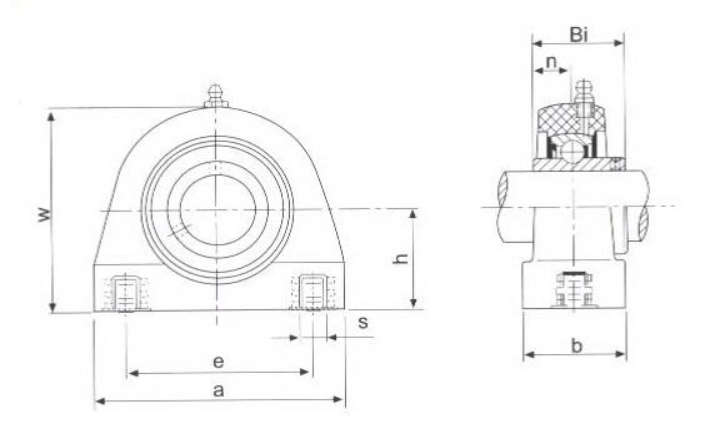

Unit No.	Shaft Dia		Dimensions (mm)								Bolt Size mm	Housing No.	Bearings No.	Weight
Unit No.	d(in)	D (mm)	h	b	w	e	a	s	Bi	n	Bolt Size mm	Housing No.	Bearings No.	kg
TP-SUCPA201		12	33.3	34.5	64	52	76	M8	31	12.7	M8	TP-PA201	SUC201	0.1
TP-SUCPA201-8			33.3	34.5	64	52	76	M8	31	12.7	M8	TP-PA201	SUC201-8	0.1
TP-SUCPA202-9			33.3	34.5	64	52	76	M8	31	12.7	M8	TP-PA202	SUC202-9	0.1
TP-SUCPA202		15	33.3	34.5	64	52	76	M8	31	12.7	M8	TP-PA202	SUC202	0.1
TP-SUCPA202-10			33.3	34.5	64	52	76	M8	31	12.7	M8	TP-PA202	SUC202-10	0.1
TP-SUCPA203		17	33.3	34.5	64	52	76	M8	31	12.7	M8	TP-PA203	SUC203	0.1
TP-SUCPA203-11			33.3	34.5	64	52	76	M8	31	12.7	M8	TP-PA203	SUC203-11	0.1
TP-SUCPA204-12			33.3	38	64	52	76	M8	31	12.7	M8	TP-PA204	SUC204-12	0.1
TP-SUCPA204		20	33.3	38	64	52	76	M8	31	12.7	M8	TP-PA204	SUC204	0.1
TP-SUCPA205-14			36.5	38	72	56	84	M10	14.3	14.3	M10	TP-PA205	SUC205-14	0.14
TP-SUCPA205-15	15/16		36.5	38	72	56	84	M10	14.3	14.3	M10	TP-PA205	SUC205-15	0.14
TP-SUCPA205		25	36.5	38	72	56	84	M10	14.3	14.3	M10	TP-PA205	SUC205	0.14
TP-SUCPA205-16			36.5	38	72	56	84	M10	14.3	14.3	M10	TP-PA205	SUC205-16	0.14
TP-SUCPA206-17			42.9	48	84	66	94	M10	38.1	15.9	M10	TP-PA206	SUC206-17	0.2
TP-SUCPA206-18			42.9	48	84	66	94	M10	38.1	15.9	M10	TP-PA206	SUC206-18	0.2
TP-SUCPA206		30	42.9	48	84	66	94	M10	38.1	15.9	M10	TP-PA206	SUC206	0.2
TP-SUCPA206-19			42.9	48	84	66	94	M10	38.1	15.9	M10	TP-PA206	SUC206-19	0.2
TP-SUCPA206-20			42.9	48	84	66	94	M10	38.1	15.9	M10	TP-PA206	SUC206-20	0.2
TP-SUCPA207-20			47.6	48	95	80	110	M10	49.2	17.5	M10	TP-PA207	SUC207-20	0.24
TP-SUCPA207-21			47.6	48	95	80	110	M10	49.2	17.5	M10	TP-PA207	SUC207-21	0.24
