UCPH Series
Category:
Outer spherical bearing with seat
Key words:
Outer spherical bearing with seat
This product is designed with vertical seat bearings for the purpose of improving the center, and also has high strength for impact load. It is widely used in applications where the central dimension from the mounting bottom surface to the shaft is large, such as printing machinery, textile machinery, etc.
| Shaft diameter |
Type of continuous bearing |

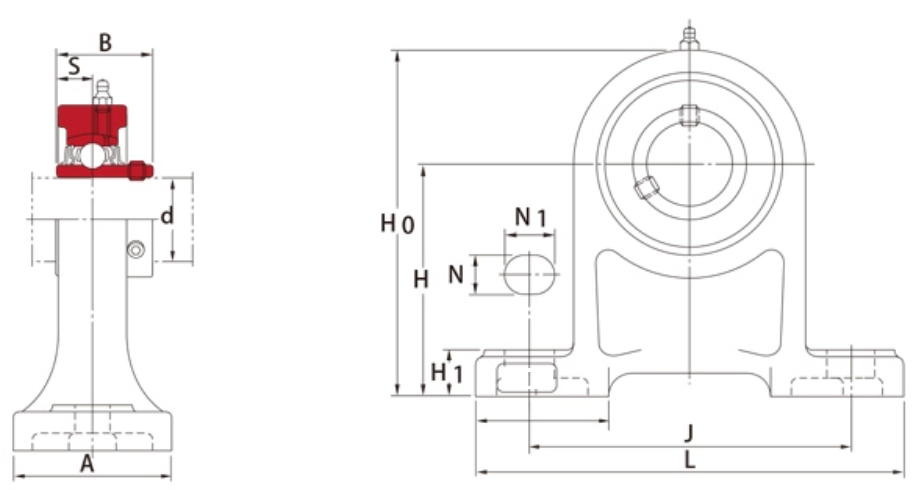

Overall dimension (mm) |
Bolt specification |
Bearing model |
Seat model |
Weight (kg) |
||||||||||
| d |
H |
J |
L |
A |
N |
N1 |
H1 |
H0 |
S |
B |
||||||
| (min.) |
(Mm) |
|||||||||||||||
|
1/2
5/8
11/16 3/4 |
12
15
17
20 |
UCPH201 201-8 202 202-10 203 203-11 204-12 204 |
70 |
95 |
127 |
40 |
12 |
16 |
13 |
101 |
12,7 |
31 |
M10 |
UC201 201-8 202 202-10 203 203-11 204-12 204 |
PH204 |
0,97 |
| 7/8 15/16
1 |
25 |
UCPH205-14 205-15 205 205-16 |
80 |
105 |
140 |
50 |
13 |
19 |
16 |
114 |
14,3 |
34 |
M10 |
UC205-14 205-15 205 205-16 |
PH205 |
1,20 |
| 1-1/8
1-3/16 1-1/4 |
30 |
UCPH206-18 206 206-19 206-20 |
90 |
121 |
165 |
50 |
17 |
21 |
18 |
130 |
15,9 |
38,1 |
M14 |
UC206-18 206 206-19 206-20 |
PH206 |
1,60 |
| 1-1/4 1-5/16 1-3/8
1-7/16 |
35 |
UCPH207-20 207-21 207-22 207 207-23 |
95 |
127 |
167 |
60 |
17 |
21 |
19 |
140 |
17,5 |
42,9 |
M14 |
UC207-20 207-21 207-22 207 207-23 |
PH207 |
2,10 |
| 1-1/2 1-9/16 |
40 |
UCPH208-24 208-25 208 |
100 |
137 |
184 |
66 |
17 |
21 |
20 |
150 |
19 |
49,2 |
M14 |
UC208-24 208-25 208 |
PH208 |
2,70 |
| 1-5/8 1-11/16 1-3/4 |
45 |
UCPH209-26 209-27 209-28 209 |
105 |
146 |
190 |
70 |
17 |
21 |
20 |
158 |
19 |
49,2 |
M14 |
UC209-26 209-27 209-28 209 |
PH209 |
3,10 |
| 1-7/8 1-15/16
2 |
50 |
UCPH210-30 210-31 210 210-32 |
110 |
159 |
204 |
70 |
19 |
22 |
22 |
165 |
19 |
51,6 |
M16 |
UC210-30 210-31 210 210-32 |
PH210 |
3,50 |
| 2 2-1/8
2-3/16 |
55 |
UCPH211-32 211-34 211 211-35 |
120 |
171 |
217 |
75 |
19 |
22 |
23 |
181 |
22,2 |
55,6 |
M16 |
UC211-32 211-34 211 211-35 |
PH211 |
4,07 |
| 2-1/4
2-3/8 2-7/16 |
60 |
UCPH212-36 212 212-38 212-39 |
130 |
186 |
236 |
80 |
19 |
22 |
24 |
197 |
25,4 |
65,1 |
M16 |
UC212-36 212 212-38 212-39 |
PH212 |
|
| 2-1/2 |
65 |
UCPH213-40 213 |
140 |
203 |
258 |
85 |
23 |
28 |
26 |
213 |
25,4 |
65,1 |
M20 |
UC213-40 213 |
PH213 |
|
| 2-3/4 |
70 |
UCPH214-44 214 |
150 |
210 |
266 |
90 |
23 |
28 |
27 |
227 |
30,2 |
74,6 |
M20 |
UC214-44 214 |
PH214 |
|
| 2-15/16
3 |
75 |
UCPH215-47 215 215-48 |
160 |
217 |
274 |
95 |
23 |
28 |
28 |
240 |
33,3 |
77,8 |
M20 |
UC215-47 215 215-48 |
PH215 |
|
| 80 |
UCPH216 |
170 |
232 |
290 |
100 |
24 |
28 |
30 |
256 |
33,3 |
82,6 |
M20 |
UC216 |
PH216 |
||
