SAPFT Series
Category:
Outer spherical bearing with seat
Key words:
Outer spherical bearing with seat
This product is made of steel plate diamond bearing housing is very suitable for installation space is limited, or the need for tight installation of the occasion.
| Shaft diameter |
Type of continuous bearing |

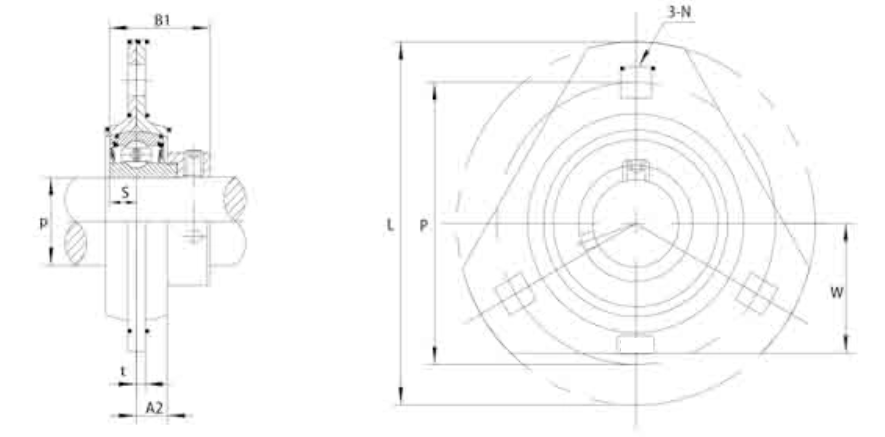

Overall dimension (mm) |
Bolt specification |
Bearing model |
Seat model |
Weight (Kg) |
|||||||||
| d |
L |
P |
A2 |
t |
N |
W |
S |
B1 |
|||||||
| (min.) |
(Mm) |
||||||||||||||
|
1/2
5/8
11/16 |
12
15
17 |
SAPFT201 201-8 202 202-10 203 203-11 |
82 |
64 |
7 |
2 |
7,5 |
29 |
6,5 |
28,6 |
1/4 |
M6 |
SA201 201-8 202 202-10 203 203-11 |
PFT203 |
0,29
|
| 3/4 |
20 |
SAPFT204-12 204 |
91 |
71 |
8 |
2 |
9 |
33 |
7,5 |
30,9 |
5/16 |
M8 |
SA204-12 204 |
PFT204 |
0,31 |
| 7/8 15/16
1 |
25 |
SAPFT205-14 205-15 205 205-16 |
95 |
76 |
9 |
2 |
9 |
35 |
7,5 |
30,9 |
5/16 |
M8 |
SA205-14 205-15 205 205-16 |
PFT205 |
0,41 |
| 1-1/8
1-3/16 1-1/4 |
30 |
SAPFT206-18 206 206-19 206-20 |
113 |
90 |
9 |
2,5 |
10,5 |
38 |
9 |
35,7 |
3/8 |
M10 |
SA206-18 206 206-19 206-20 |
PFT206 |
0,67 |
| 1-1/4 1-5/16 1-3/8
1-7/16 |
35 |
SAPFT207-20 207-21 207-22 207 207-23 |
122 |
100 |
10 |
15 |
10,5 |
45 |
9,5 |
38,9 |
3/8 |
M10 |
SA207-20 207-21 207-22 207 207-23 |
PFT207 |
0,87 |
