SAPF Series
Category:
Outer spherical bearing with seat
Key words:
Outer spherical bearing with seat
The bearing box made of stamped steel plate not only reduces the weight, but also reduces the cost. Suitable for light load, low speed occasions.
| Shaft diameter |
Type of continuous bearing |

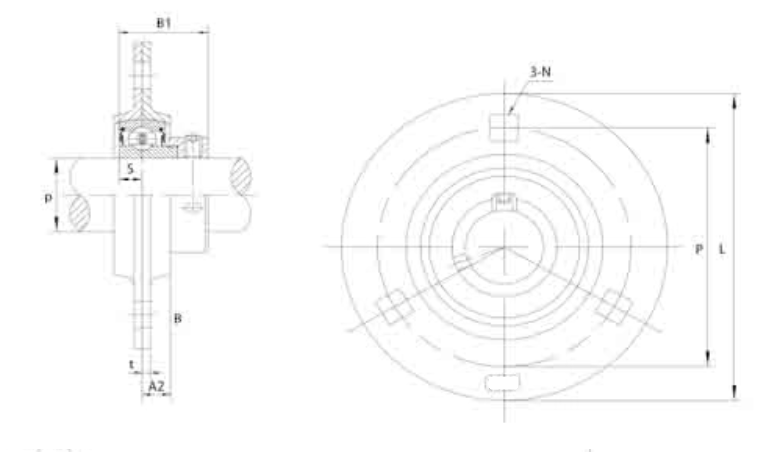

Overall dimension (mm) |
Thread specification |
Bearing model |
Seat model |
Weight (Kg) |
||||||||
| d |
L |
P |
A2 |
t |
N1 |
S |
B1 |
|||||||
| (min.) |
(Mm) |
|||||||||||||
|
1/2
5/8
11/16 |
12
15
17 |
SAPF201 201-8 202 202-10 203 203-11 |
82 |
64 |
7 |
2 |
7,5 |
6,5 |
28,6 |
1/4 |
M6 |
SA201 201-8 202 202-10 203 203-11 |
PF203 |
0,29
|
| 3/4 |
20 |
SAPF204-12 204 |
91 |
71 |
8 |
2 |
9 |
7,5 |
30,9 |
5/16 |
M8 |
SA204-12 204 |
PF204 |
0,31 |
| 7/8 15/16
1 |
25 |
SAPF205-14 205-15 205 205-16 |
95 |
76 |
9 |
2 |
9 |
7,5 |
30,9 |
5/16 |
M8 |
SA205-14 205-15 205 205-16 |
PF205 |
0,41 |
| 1-1/8
1-3/16 1-1/4 |
30 |
SAPF206-18 206 206-19 206-20 |
113 |
90 |
9 |
2,5 |
10,5 |
9 |
35,7 |
3/8 |
M10 |
SA206-18 206 206-19 206-20 |
PF206 |
0,67 |
| 1-1/4 1-5/16 1-3/8
1-7/16 |
35 |
SAPF207-20 207-21 207-22 207 207-23 |
122 |
100 |
10 |
2,5 |
10,5 |
9,5 |
38,9 |
3/8 |
M10 |
SA207-20 207-21 207-22 207 207-23 |
PF207 |
0,87 |
| 1-1/2 1-9/16 |
40 |
SAPF208-24 208-25 208 |
148 |
119 |
12 |
3,5 |
13,5 |
11 |
43,7 |
1/2 |
M12 |
SA208-24 208-25 208 |
PF208 |
1,3 |
